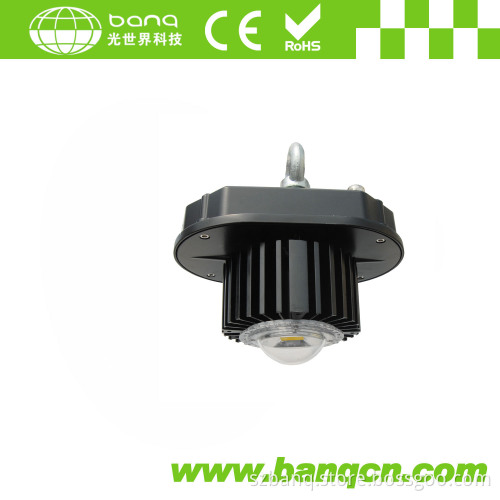

50W LED High Bay Light (CE/RoHS)

General Description
LED Industry lamp (LED high bay light) is a new technology lighting product. Compared with the traditional industry lamp, it has more advantages: Saving energy, low carbon, long life span, excellent color rendering index, quick response, etc.

Features
High efficiency & energy saving. Under the condition of the same llumination, , it saves more than 67% energy compared with the traditional lamp.
Long life span, using semiconductor chip as the light resource, the life can be over 50, 000hrs.
No UV & IR. It won't distribute ray radiation
Eco-friendly, No Hg & Xe, or other harmful element. Recyclable, also it won't generate EMI.
High performance external constant current drivers, no stroboscopic, good for eyesight protection;
Patent integrated light sources, high quality Bridgelux chip, high Light effects, high color rendering index.
Advanced thermal design, Integration with Moule-shaped, low thermal resistance, high heat dissipation efficiency.
Protection level reaches IP65.

Applications
Workshop, factory, warehouse, highway toll station. Gas station, supermarket, exhibition, gym; Mall, conference room, market;

Technical Parameters
Power: 50W
Input Voltage/Frequency: 100-240VAC/50-60Hz
Input Current(Typ): 0.5A/115VAC 0.24A/230VAC
Output Voltage: 28-35V(TYP=30V)
Output Current: 1.6A
Efficiency(Typ): >87%
Power Factor(Typ): PF>0.98/115VAC

Lighting parameters
LED Chips Quantity: 1 PCS
LED Consumption: 50W
System Consumption: 57W
LED Luminous Efficiency: 8 0-120Lm /W
Color Temperature: 2700K ~7000K
Lamp's Luminous Efficiency: ≥ 70 Lm/W
Lumen Maintenance: 70%( 50000Hrs)
Color Rendering Index: Ra≥ 70
Operating Temperature: -40 ~ + 45
Storage Temperature: -4 0 ~ +70
IP Grade: IP65
Life-span: 50000Hrs
Materials: Aluminium
Appliance Class: Class I
The color of the lamp shell: Black/Silver
Mounting: Ceiling-mounted
Note: Light optic with a little deviation for different color temperature LED, deviation value≤ 5%

Installation Introduction
1. Tightening the rings, and the ring is M20 thread.
2. Connect the rings and the hook. And put theproduct steadily.
3. Workingand Storing in the normal temperature.
4. When installing the products, the point ofconnecting of wires must be closed very well toavoid theleakage.
5. Must take some waterproof protection when connect the outside power wires.
6. Prohibit to violate any fire protecting rules when using.
7. Please ask the professional electrician when installing. And the ways of connecting of 3X1MM2 wires is that Brown is firing line, Blue is null line, Yellow is earth line.

Note
1. Any wire damage should be replaced by qualified professional person to avoid dangerous occurs.
2. Please cut down the input power supply once the lamp works abnormal.
3. Please take measures of lightning protection, and ensure the Input voltage which is stable.
4. Pls put the lamp under the dry, ventilated and clean circumstance, and clean and maintain regularly.
5. Don't disassemble by yourself, avoid the electric shock as there is high voltage inside the lamp.

Warranty
We have 5 years and 3 years warranty for the MeanWell driver, and for the whole product, we have 3 years warranty.

Remark: The warranty on the base of right storing way, right installing way, right using way, right maintaining way. Any broken out of our rule, out of our warranty. During the warranty time, we can choose repairing, replacing parts or replacing the whole products according the detail information. And we'll charge the customers some material fee and labor cost if the product out of our warranty time.
