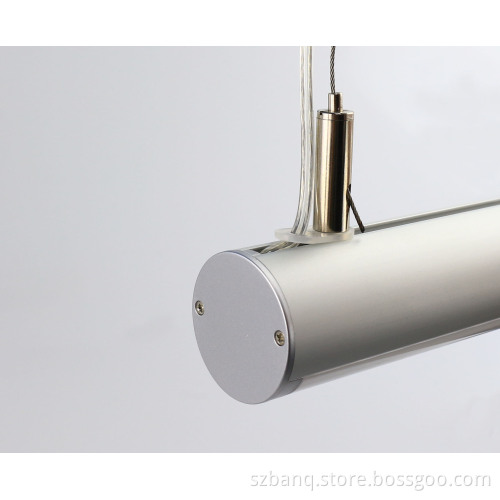

LED Bq4040 Aluminum Profile Light.

Description
Installation type: Pendant type/Surface type
PC cover: Diffuse/V1 fire resistant rate
Ending cap: Silver PC with hole; V1 fire resistant rate
Matched FPCB: 15-20mm width
Aluminum type: 6063-T5 Aviation aluminum,
Anodized aluminm
LED Size: 2835

LED QTY: 144PCS /M
Power: 34.5W/M
Voltage: DC24V
CRI: >70

Installation instructions

1. Drill holes for M3 recessed screw in the aluminum profile evenly.
2. Fix aluminum profile on the installation place with M3*15 screw.
3. Place LED flexible strip in aluminum profile smoothly and connect
Lamp with power supply.
4. Push PC cover in to aluminum profile.
5. Flxthe ending cap in to aluminum profile by screw.

Installation instructions

1. Drill holes for M3 recessed screw in the aluminum profile evenly.
2. Place LED flexible strip in aluminum profile smoothly and connect
Lamp with power supply.
3. Push PC cover in to aluminum profile.
4. Flxthe ending cap in to aluminum profile by screw.
5. Fix clips in appropriate place with M3*15 screw.
6. Install the assembled products into the clips.
