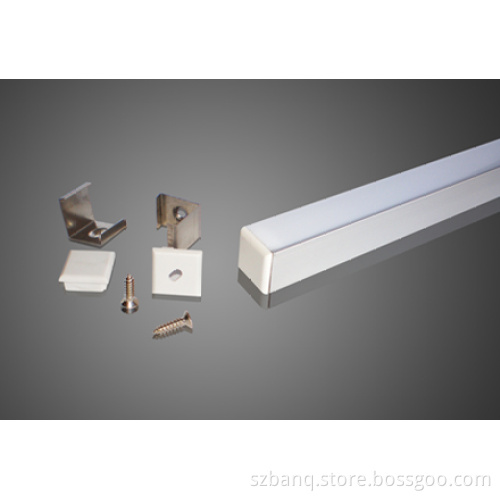

Banq CE RoHS ERP Linear LED Cabinet Light (BQ1616B)

Banq CE ROHS ERP linear LED cabinet light (BQ1616B)

*Parameters
Power: 9.6W/M, 14.4W/M
Input Voltage: DC12V
Length: 1010MM
LED QTY/Meter: 120
Color: Y/R/B/G/W
Working Temperature: -40--+50
Storage temperature: -50--+60
*Description:
Type: For decoration, generally used at right-angle places.
Aluminum profile: 6063 alumium, anodizing
Acrylic Cover: Milky white/transparent, fire-proofing V1
Caps: White, PC material, holes in just one end. Fire-proofing V1
FPCB Availuable: Width10mm

*Acrylic cover
Material: PMMA, fireproofing V1
Type: Transparent/milky white
Technology: Stretch

*LED Flex Strip
Material: Rolled anneal copper foil
Technology: Anodizing

*Aluminum Profile
6063-T5 Aircraft Aluminum
Anodizing

*Cap
Material: PC, fire-proofing V1
Fire-proofing: V1
Technology: Injection molding

*LED Strip Recommend
BQ00-3528*120Hy12-W10-IP20
BQ00-3528*120Hy24-W10-IP20
BQ00-3014*120Hy24-W10-IP20
BQ00-3014*120Hy12-W10-IP20


*Application
1. Gradevin, Ceiling light
2. Cabinet; Bookcase
4. Home furnishing
5. At right-angle places

*Installation Instruction
1. Put the flex strip in aluminum profile, and tear off the back coating.
2. Stick the flex strip into the aluminum slotware smoothly, keep it level.
3. Push the PC cover into the aluminum profile and coating the caps with silicon adhesive.
4. Push caps coated with adhesive into the profile and led it dry naturally.
5. Fix the clips in right palce with M3*15 screw.
6. Install the assembled parts into the clips.
