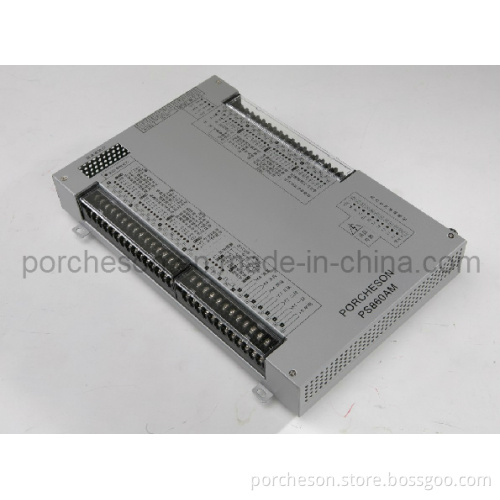

Programmable Controller (PS860AM)

PS860AM PLC controller / Injecton Molding Machine Control System

— 6 layer password setting to inhance security of data storage
— PID self-learn temperature, 7 sections of temperature
— Nozzle temperature can be selected between loop control and closed-loop control
— Multi-stroke control control, position switch 3 channels of 16 bit linear scale input
— With 999 groups of mode data storage, Chinese/English mold description input and real-time operational help
— Multi-language selected, display dynamically in real time, 999 groups of SPC tracking record
— With functions of overloading protection and short circuit protection on input/output prots
— Real time dynamic observation on output values of pressure, speed and current, no need extra ammeter
— With functions of multi-safety protection procedure and internal safety circuit control
— With function of failure-detection, alarm display and voice prompt
— 3 channels of standard 16 bit D/A ratio output with max current 3A
— 2 channels of standard of 0-10V output DC24V I/O27/28, Relay 10outports
— With functions of long-distance communications whcih enable us to to program and replace different versions of softwares
— One host computer is capable for managing productions of 512 pieces of machines, and has accurate production figures on each machine, easy to print and manage
