XX-K120 Main Controller

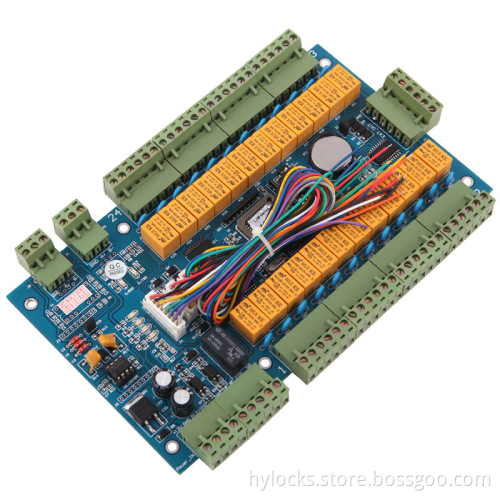

1, Outside measurement 203mm*117mm*20mm2, Temperature: 0~70 centigrades3, Humidity: 10 ~90 percentagesNetwork system V1.1 characteristic:1 The system can connect at most 4 expantion boards which control 120 bins.2 It can storage one anti-Stress Password, two administrator's passwords, three manager cards, 600 Regular user cards and 6960 records.3 You can set effective date, 3 time quantum and PIN in every user card.4 It can be set many kinds of working style: Single card mode, card or code mode, card and code mode, dual card mode.Networking type needs to connect communication lines, and the system basically consists: Main controller, LCD display screen, 1 or 2 access card readers ( include matrix keyboard ), electric control lock, it also can add emergency button, annunciator and 1-4 expansion boards.The definition of wire connecting terminal for main controllerTerminal locations pls see the pictureTB1: Mains inputTB2: Emergency button inpu, alarm relay outputTB3~TB6, TB8~TB11: 24 Way Power Locks relay outputTB7: Expansion Board InterfaceTB13: RS485 Interface, connect State acquisition boardTB14: RS485 or RJ-45 Interface, connect Management host or routerJ4: LCD display screen InterfaceJ11: Access card reader 1J12: Access card reader 2Networking type system management is mainly completed by upper computer software, and pls see the storage box system software manual about the operating procedure. The following is the explansion of meaning for some system parameter.The definition of wire connecting terminal for expansion boardTB1: Connection the previous expansion boardTB6: Connection the next expansion boardTB2~TB5, TB7~TB10: 24 24 Way Power Locks relay output
