Plug Bending Tester (HD-8820)
- Payment Type:
- T/T
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T |
Product Description
Product Description

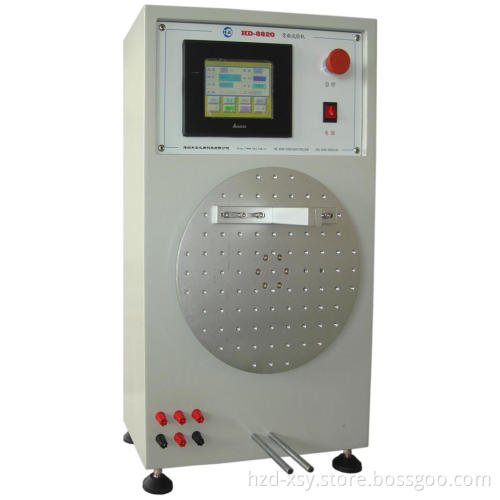

Plug Flexing Tester HD-8820
Product explanation:
This device is designed and manufactured to meet the requirements of UL817, IEC60884-1, GB2099.1, IEC60320-1 standards. It is mainly used for the flexing test of plug and plug wire.
Feature:
* It is a single work unit tester, but 2 to 5 plugs can be tested together.
* Flexing center axis can be adjusted to different places.
* Operated by touch-screen.
* When test fail, this machine will stop automatically.
Technical parameter:
Power source: AC 220V 50Hz
Clamping mechanism: 1 set
Flexing center axis adjustable: Available
Specimen: 2~5 set
Flexing angle: 50~9999 adjustable
Flexing precision: +-1
Test speed: 5~60 cycles adjustable
Counter: 0~999999 times
Counter precision: +-1time
Weight: 1kg, 2kg
Dimension: 400mm L, 350mm W, 700mm H
Product explanation:
This device is designed and manufactured to meet the requirements of UL817, IEC60884-1, GB2099.1, IEC60320-1 standards. It is mainly used for the flexing test of plug and plug wire.
Feature:
* It is a single work unit tester, but 2 to 5 plugs can be tested together.
* Flexing center axis can be adjusted to different places.
* Operated by touch-screen.
* When test fail, this machine will stop automatically.
Technical parameter:
Power source: AC 220V 50Hz
Clamping mechanism: 1 set
Flexing center axis adjustable: Available
Specimen: 2~5 set
Flexing angle: 50~9999 adjustable
Flexing precision: +-1
Test speed: 5~60 cycles adjustable
Counter: 0~999999 times
Counter precision: +-1time
Weight: 1kg, 2kg
Dimension: 400mm L, 350mm W, 700mm H
