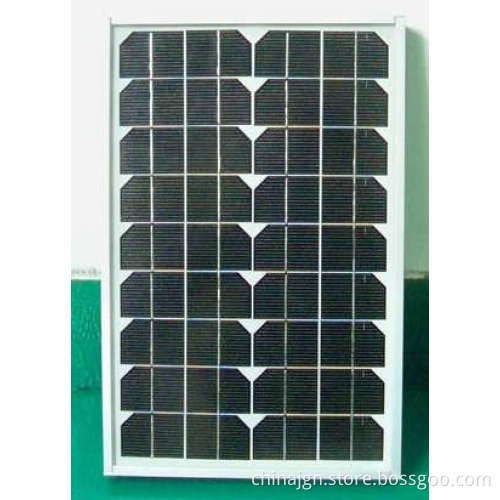

PV Module for Solar Street Light

PV module/PV solar module for solar street light:
Peak power(Wp): 20W
Maximum operating voltage (V): 18V
Maximum operating current (A): 1.1A
Open circuit voltage (V): 21.6V
Short circuit current (mA): 1.27A
Number of cells (PCS): 36PCS
Size of module (mm): 535*345*25mm

1. The JUGUANGNENG's solar modules, PV solar panels are produced with industry-leading
2. Performance and professionally design with high conversion efficiency.
3. Produced with white tempered glass, EVA, waterproof substrate film and anodized aluminum alloy frame to provide adequate protection against various environmental conditions.
4. The solar cells are strictly inspected and sorted according to electric charateristics to prevent mismatching.
5. Visual inspection, performance measurement and dielectric tests on every product.
6. Products with CE certificate.
7. All orders for customization are welcomed
8. Customize the dimension and frame according to your requirements.
9. Standard Testing Conditions: AM1.5 E=1000W/m2 T=25oC
