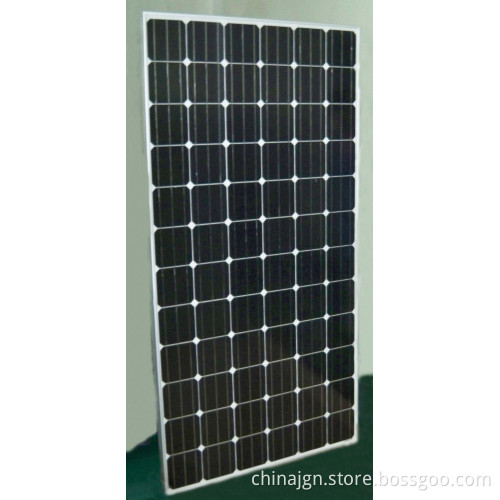

Mono Solar Panel

Maximum power (W p) 300
Maximum power voltage (V) 36
Maximum power current (A) 8.33
Open circuit voltage (V) 43.2
Short circuit current (A) 10.00
Size of module (mm) 1945*986*50
Maximum system voltage (V) DC
Temperature coefficients of Isc (%) +0.04± 0.015%/º C
Temperature coefficients of Voc (%) -(0.35± 0.002) %/º C
Temperature coefficients of Pm (%) -(0.5± 0.05)%/º C
Temperature coefficients of Im(%) +0.04%/º C
Temperature coefficients of Vm (%) -0.38%/º C
Temperature Range -40º C~90º C
Tolerance Wattage (e. G. ± 5%) ± 5%
Surface Maximum Load Capacity 60m/s(200kg/m² )
Allowable Hail Load Steel ball fall down from 1m height
Weight per piece(kg) 24
Length of Cables(mm) 900mm
Cells 156*156
Output tolerance (%) ± 5%
Frame (Material, Corners, etc. ) Aluminum
Standard Test Conditions AM1.5 1000W/m² 25º C
Warranty 10 year product warranty and 25 years 80% of power
FF (%) >70%
Packing To be confirmed by both parts
