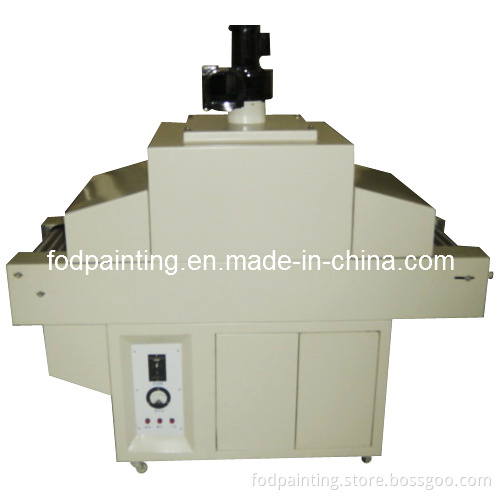

Single Lamp UV Paint Curing Machine

UV paint curing machine
Introdution
UV drying machine is also called UV curing machine, UV dryer. Is the use of strong ultraviolet radiation, transient surface curing, is a new technology developed rapidly in recent years. Its unique radiation characteristics and good performance, has attracted great attention in science circles and enterprise circles, used for offset printing all kinds of non - permeable base material, instant dry adhesion.

Uv paint dryer equipment application:
1. Electronic components, plastic components, wire, glass handicrafts, coil bonding
2. Computer keyboard, silicone button, plastic shell spraying, printing and drying
3. UV ink, UV glue, UV light oil, UV paint coating product testing

UV paint drier equipment features:
1. Each lamp independent control, the tube angle and focal length can be adjusted
2. The lamp power can be adjusted, the design strength lamp switch
3. Lamp lighting complete instructions and over temperature and fault indication
4. Abnormal emergency such as leakage, overload and over temperature protection function

5. Air-cooled, cooperate with quartz glass CF, reduce radiation temperature
6. Conveyor mesh belt partial prevention device, non-grade speed adjustment, LED speed meter display

Parameter
Model

FOD-UV3000

FOD-UV6000

FOD-UV9000

Processing width

600 mm

1000 mm

1300 mm

Processing thickness

2-100 mm

2-100 mm

2-100 mm

Min. Processing length

300 mm

300 mm

300 mm

Fan power

1.5 KW

1.5 KW

1.5 KW

Motor

0.37

0.37

0.75

Lamp power

3000WX1pciece

3000WX2pcs

3000WX3pieces

Conveyor power

0.37 KW

0.37 KW

0.75 KW

Feeding speed

5-20m/min

5-20m/min

5-20m/min

Radiator power

0.75 KW

0.75 KW

2.2 KW

Overall size

2400*1250*1260

2400*1550*1260

2400*1850*1980

Gross net

500 KG

580 KG

700 KG

Maintenance Gurantee:
One year warranty will be provided on the condition of normal operation of the machine. During the period of warranty, damaged parts could be exchanged at free if the damaged is owing to bad quality of the goods, Damaged parts is required to return us. If it was damaged by human being, parts will be exchanged or repaired at cost as quotation price. (Engineer transportation fee was not included)
Our supply Scope
1. We manufactury kinds of indusry ovens including spray paint drying oven. Cabinet single door, double door, 3doors oven, IAutomatical painting line IR Oven. UVoven, Large PU oven. Hight temperature oven achieved 500degree.
2. Metal Powder coating hanging line drying oven. Temperature adjusted 15-300degree.
3. Tunnel type low temperature ovens. Ets.
