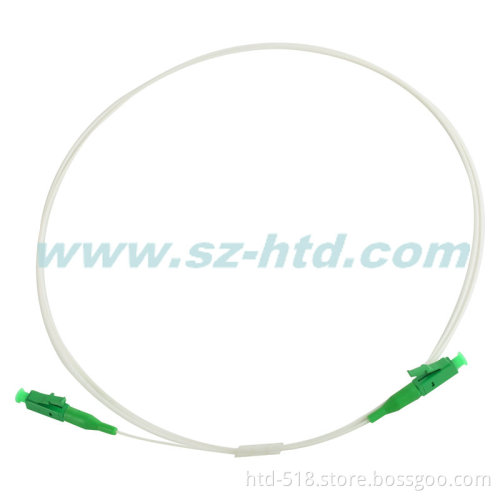

LC/APC-LC/APC SM Simplex 0.9mm Fiber Optic Patch Cord

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, D/P, Paypal, Money Gram, Western Union

Product Description

LC/APC-LC/APCSM Simplex 0.9mm Fiber Optic Patch Cord

Specification

Fiberoptic patch cord
Manufacturer
100% tested before delivery
Custom Cable, Connector...
Good Quality at Fair Price

Applications

1. Telecommunications
2. Local Area Network (LAN)
3. Fiber to the home (FTTH)
4. Optical patch panels
5. Testing Instruments
6. CATV

Feature

Fiber Optic Cables are 100-percent tested for quality
Offers the optimal solution for high-speed data transmission
100% tested for reliability and performance

Parameters

Single mode (9/125)
Max Insertion Loss: PC: 0.3dB APC: 0.2dB
Minimum Return Loss: PC: 50dB APC: 60dB
Max Attenuation: 1310nm: 0.4dB/km 1550nm: 0.22dB/km

Multi mode(50/125, 62.5/125, OM3)
Max Insertion Loss: 0.5dB
Minimum Return Loss: 25dB
Max Attenuation: 62.5/125um: 0.7dB/km 50/125um: 2.3dB/km 10G 50/125um: 2.5dB/km
Operating temperature: -40 to +75
Storage temperature: -40° C ~ +85° C

Order Information

Cable Material: PVC, LSZH (LSOH), OFNR
Ferrule: Zirconia Ceramic
Cable Diameter: 3.0mm, 2.0mm, 0.9mm
Fiber Type: 9/125um, 50/125um, 62.5/125um, 10G OM3(50/125um)
Polishing: PC, APC
