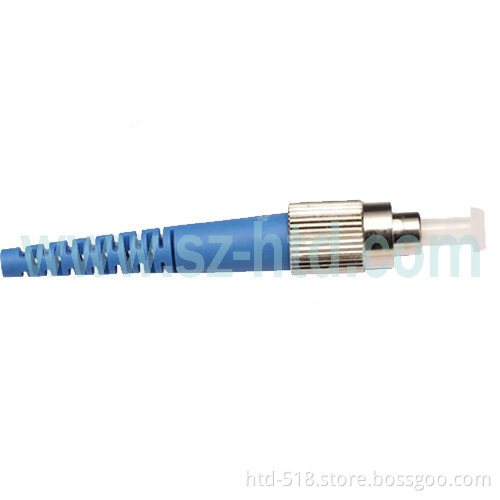

FC/PC 3.0 Fiber Optic Connector

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union, Paypal, Money Gram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Payment Type:	L/C, T/T, D/P, Western Union, Paypal, Money Gram

Product Description

FC/PC 3.0 Fiber Optic Connector

Specifications

Fiberoptic patch cord
Manufacturer
100% tested before delivery
Custom Cable, Connector...
Good Quality at Fair Price

Insertion Loss; Single mode<=0.2dB & Multimode<=0.3dB
Return Loss; PC>=50dB, UPC>=55dB & APC>=65dB
Durablity <0.2dB typical change, 1000 mating
Operating Temperature; -40 to 80

Features
1. Low insertion loss and back reflection loss
2. Boots in a variety colors
3. Telcordia style boots
4. Ferrule end surface pre-domed

Applications
1. Telecommunication networks
2. Premise installations
3. Active device termination

Ferrule Hole Sizes;
Singlemode
125.0+1/-0um, concentricity<=1.0um
125.5+1/-0um, concentricity<=1.0um
126.0+1/-0um, concentricity<=1.0um
Multimode; 125um concentricity <=3um
127um concentricity <=3um
128um concentricity <=3um

Availability
The connector can be supplied as a pre-assenbled one piece or one piece or as connector kit.
Clips are avaliable for SC and LC duplex connector.
Boots in a varity of colors.
PC and APC, UPC are availiable.
Singlemode and multimode are available.
