SD-BA550L mini electric screw driver set

SD-BA550L mini electric screw driver set

$300.00

≥1 Others

Min. Order:: 1 Others

Min. Order:: 1 Others

Transportation:: Ocean, Land, Air, Express, Railway

Port:: Shenzhen Port

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen
Productivity:	10000sets/day
Supply Ability:	Strong
Payment Type:	T/T
Incoterm:	FOB
Certificate:	CE,CCC,ROHS and ISO9001:2008
Transportation:	Ocean,Land,Air,Express,Railway
Port:	Shenzhen Port

Product Description

SD-BA550L mini electric screw driver set with power supply

The advantages of servo motors are obvious. In addition to the high cost, the cost problem is also the main reason why the servo tightening system cannot be popularized. In the production design of automatic lock screw machines, electric or pneumatic screwdrivers are usually used as the locking and paying power. Its investment is small, the effect is fast, the efficiency is high, and the locking and paying requirements can be met. Servo tightening machines are used for products with high precision requirements (automotive engines, aviation, etc.), and currently servo tightening machines only perform tightening actions (such as tightening screws for car tires), and do not convey screw nuts.

our company also has many products, such as Soldering Fume Extractor, Solder Paste Dispenser, Pneumatic Hand-held Screw Feeder, Automatic Screw Feeder . If you need these products, you can contact us, we will reply to you as soon as possible.

Electric Screwdriver SD-BA Brand New Upgraded Version series Performance:

1. Whole machine adopts non-contact switch, with longer lifetime, lower maintenance rate, and a three-stage forward and revers rotation switch. It feels better, and it can prevent error operation effectively.

2. Brushless motor is application in a dust-free condition,Low noise and durability. The output of torque is highly stable. It is not only a easy-operate equipment but this screwdriver can be operated for a long period.

3. Non-contact switch is used to provide a durable life in which there is no necessity to replace the item often.

Ergonomic size, high temperature durable, weak vibration, good grip, new appearance, light weight, easy to operate for a long time without fatigue, improve efficiency.

4. High precision of the torque, with step-less torque adjustment, simple operation, it can be generally used for electrical and electronic lightening products, home appliances, toys, computer/ phone/ watches accessories and other processing and assembling operations.

5. Certification: CE, CCC, ROHS and ISO9001:2008.

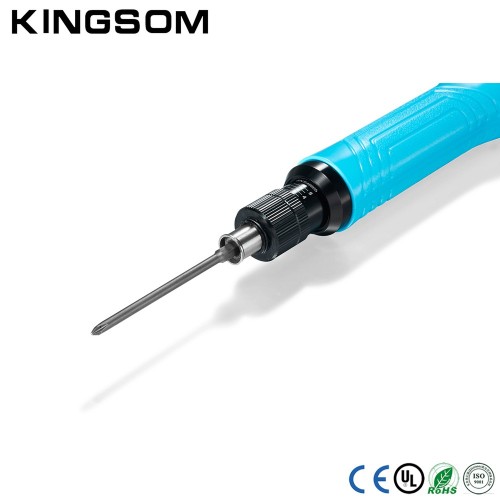

Images of this SD-BA Brand New Upgraded Version series

SD-BA550L mini electric screw driver set with power supply

Specifications

Model	Measuring Range		No Load Speed(rpm)		Input Voltage	Weight(g)	Diameter of Screw
Model	kgf.cm	N.M	HI	LO	Input Voltage	Weight(g)	Diameter of Screw
SD-BA200L	0.1-1.5	0.01-0.15	1000	650	30V	340	M1.0-M1.7
SD-BA300L	0.2-3.5	0.02-0.34	1000	650		340	M1.2-M2.5
SD-BA400L	0.3-6.5	0.03-0.63	1000	650		340	M1.4-M2.6
SD-BA450L/P	1-10	0.1-1	1000	650		540	M1.4-M3.0
SD-BA450LF/PF	1-10	0.1-1	2000	1300		540	M1.4-M3.0
SD-BA500L/P	2-12	0.2-1.18	1000	650		540	M1.6-M3.0
SD-BA500LF/PF	2-12	0.2-1.18	2000	1300		540	M1.6-M3.0
SD-BA550L/P	3-19	0.29-1.86	1000	650		540	M2.3-M3.5
SD-BA550LF/PF	3-19	0.29-1.86	2000	1300		540	M2.3-M3.5
SD-BA600L/P	5-25	0.5-2.45	1000	650		680	M2.6-M4.0
SD-BA620LF	10-30	0.98-3.43	2000	-----		680	M2.6-M4.5
SD-BA630L/P	10-35	0.98-3.43	500	350		680	M3.0-M5.0
SD-BA700L/P	15-45	1.47-4.41	500	350		680	M3.5-M5.5
SD-BA730L	20-50	1.96-4.9	1000	-----		680	M4.0-M6.0
