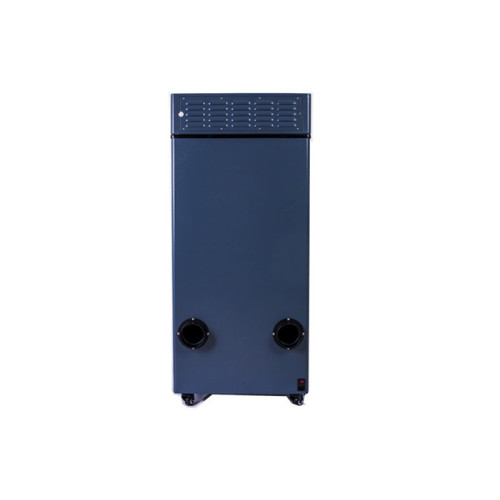

Cartridge fume extractor portable industrial dust collector

The principle difference and advantages with other purifiers: Usually, most purifiers on the market use activated carbon type purifiers, which use the physical characteristics of activated carbon with adsorption capacity. When the activated carbon adsorption is saturated, it is necessary Replace the activated carbon. If the activated carbon is not replaced, the purifier will be completely ineffective and lose its purifying function. The frequency of replacing consumables is generally every few months. The built-in high-pressure fan is noisy and consumes electricity, requiring regular maintenance. The optical purifier we developed and produced uses the optical band to transform and decompose the exhaust gas (toxic, harmful and odorous gas) generated during laser processing, disperse the chemical molecular structure from the root, and transform and decompose the odor molecules that are difficult to diffuse into small molecular components. It is easy to dissipate in the air and is non-toxic and harmless to the human body.

Our company can also develop customized purifiers according to the special requirements of customers, such as Lab Fume Extractor, Soldering Fume Extractor, Beauty Salon Air Filter, Solder Paste Dispenser, High Quality Lab Fume Extractor ，Laser Fume Extractor etc.



Specifications

Model	DX6000
Air inlet interface	Φ90mm *1 flange
Voltage	AC 110-220V
Power	700W
Max. No-load Speed(r/min)	6500
Negative Pressure	3000Pa
Filtering effect	0.3μm99.97%
Noise	<75dB
Flow	620m³/h
Dimensions(L*W*H)	550*415*1070mm
Weight	75kg

Product Consumprion (caculated according to 8 hours everyday)

1st Layer:

Fire prevention net: 410*330*25(mm)

Replacement period: not required for the whole service life, only need regular

2nd Layer:

Primary filter element: 420*340*28(mm)

Replacement period: 1-4 week

3rd Layer:

PP Medium efficiency filter element: 450*380*100(mm)

Replacement period: 2-6 month

4th Layer:

High efficiency glass fiber  filter element: 450*380*50(mm)

Replacement period: 3-5 month

5th - 8th Layer:

Active carbon high efficiency filter element: 450*380*50(mm)

Replacement period: 3-6 month

We can configure different filter element as you need.

Detail Images

Control Panel and Remote Control

Different ducts and nozzles for option

Applications
