Air Blow Auto Screw Device Automatic Screw Feeder
- Payment Type:
- L/C, T/T, Paypal, Western Union
- Incoterm:
- FOB, CIF
- Min. Order:
- 1 Set/Sets
- Min. Order:
- 1 Set/Sets
- Delivery Time:
- 7 Days
- Transportation:
- Air
- Port:
- Shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Productivity: | 1000set/month |
| Supply Ability: | 10000 |
| Payment Type: | L/C,T/T,Paypal,Western Union |
| Incoterm: | FOB,CIF |
| Certificate: | CE |
| Transportation: | Air |
| Port: | Shenzhen |

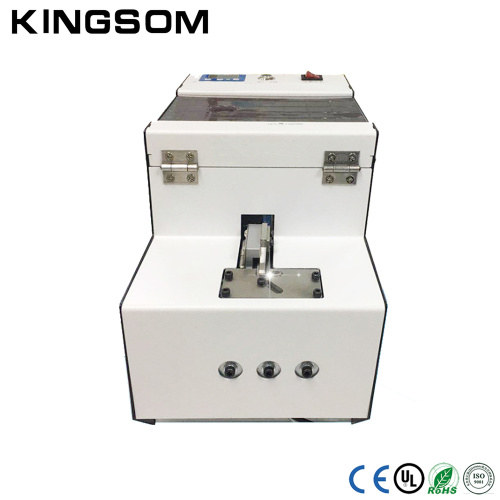

Air Blow Auto Screw Device Automatic Screw Feeder
Automatic Screw Feeder product features, first, the track is adjustable, and M1.0~M5.0 screws can be adjusted by replacing the turntable and guide rail, and the screw length can reach 15mm. Second, less faults and lower noise, with the function of reversing jamming and fault alarm. Third, the volume is small and does not occupy space, feeding and feeding are controlled separately. Fourth, it has the function of nail splitting. Stepping motors are used to move the screws one by one from the guide rail to the reclaiming port. It is used with automatic machines such as air suction electric batches or manipulators. Fifth, there is a signal output function used with automata.
In addition to Automatic Electric Screwdriver Set, our company also has Built-In Counter Electrical Screwdriver Sets, Infrared Induction Screwdriver Electric, Servo Electric Screwdriver and Mobile Electric Screwdriver.
|
Servo Motor Series |
Intelligent Counter Series |
Built-in Counter Series |
Economical Series |
|
Super Value Series |
Screw Feeder |
Screwdriving Machine |
Robot Arm |
| Model | KS-1740 |
| Size | 320(W)*165(L)*172(H)mm |
| Weight | About 6 kg |
| Power Source | AC 100-240V |
| Applicable Screw | M1.7-M4.0 |
| Applicable Screw Length | UP to 17mm (under head) |
| Scooping Chamber Capacity | 800-1000pcs for M3.0-8mm length screw |
| Feeding method | Rotary feeding |
| Failure rate | 0.03% |
| Vibration mode | Motor |
| Power | 15W |
| Working pressure | 0.4-0.6Mpa |
| Machine efficiency | 0.6 -1.0S/ 1 screw, 60-100pcs/min |
|
Accessores (in package & box) |
Ring sensor |
| Windpipe | |
| Electric Screwdriver | |
| Chuck | |
| Screw bit | |
| Air cylinder |
1. Mainly applicable to electronics, plastics, toys, electrical appliances, communications equipment and other industries assembly.
2. The operator holding an Sudong electric screwdriver aimed at the screw hole position, press screwdriver, Sudong electric screwdriver can fasten the screw, automatically start and stop. Then another screw will run to the clip immediately.
3. The equipment is composed of feeding system, screw device system, screw fasten system, gas control system and electronic control system.
4. The screws are automatically sorted, divided and sent by automatic separation device.
5. Automatic screw conveyor and screw fasten one by one on your speed,no need to take the screw by hand, convinient and quick.
6. Reliable performance, cost-effective, highly optimized for general use, and efficiency.
7. This machine is beautiful in appearance, novel in design, compact and convenient, and can be placed on the platform.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your inquiries in fluent English
3. OEM&ODM
4. Good quality paper box & carton packing
5. Double check before shipping
6. Safely Shipping method,such as DHL /EMS /FEDEX/TNT /UPS
7. Ocean Freight or cargo forwarder service
8. Sample order in small quantity is acceptable
For more detailed information or catalog, please kindly contact us!
