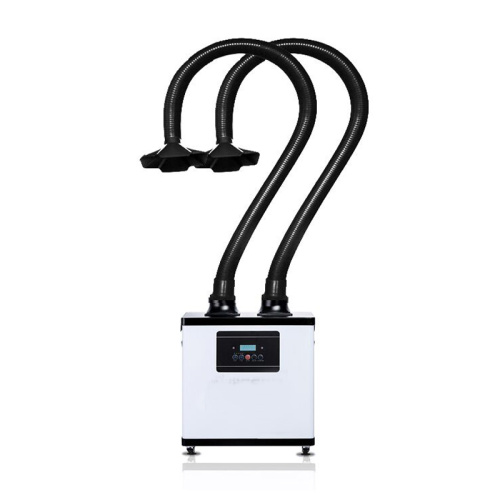

Kingsom 3D printed soldering fume extractor

The 3D Print Fume Extractor fan uses a soft-start, brushless fan, high pressure and high speed, high efficiency, low noise, stable operation and long service life. With composite filter cotton, it can absorb larger dust particles to avoid premature blockage of the main filter layer and prolong the service life of the main filter. The replacement period is 1-3 months according to the actual working situation. The integrated design of 3D Print Fume Extractor fuselage structure, high-quality sheet metal spraying technology, good impact resistance, ensure the stable operation of the equipment. Our company can also develop customized purifiers according to the special requirements of customers, such as Lab Fume Extractor, Soldering Fume Extractor,Mobile Fume Extractor , Solder Paste Dispenser,High Quality Beauty Salon Air Filter,Portable Smoke Absorber etc.

Related Products



Applications and Features of this fume extractor

1. Mainly for hair salon, beauty salon, nail salon, manual soldering, solder pot.

2. The purification rate against 300nm pollutions is 99%.

3. Multilayer filtration and rapid purification

4. Noise reduction design, quiet operation.

5. Metal body structure, strong and durable.

6. High-quality alloy fan achieves great suction power.

7. DC brushless motor is stable in performance and long in service life.

8. With digital display and remote controller.

9. With alarm system, it will remind you to replace the filter in time.




Specifications
Model FC-3002
Air inlet interface Φ75mm *2 flange
Voltage AC 110-220
Power 300W
 Max. No-load Speed(r/min) 6000
Negative Pressure 3000Pa
Filtering effect 0.3μm99.97%
Noise <65dB
Flow 420m³/h
Dimensions(L*W*H) 425*250*410mm
Weight 15Kg


Product Consumption (calculated according to 8 hours everyday)

1st Layer:

Primary efficiency filtration cotton: 365*180*25(mm)

Replacement period: 1-2 week

2nd Layer:

Medium efficiency filtration cotton: 365*175*55(mm)

Replacement period: 2-3 month

3rd Layer:

High efficiency filtration cotton: 365*195*250(mm)

Replacement period: 3-6 month

We can configure different filter element as you need.

Detailed Images

 Control Panel and Remote Control



Different ducts and nozzles for option

Application

1. Soldering Process, like Electronics & PCB board producing

2. Laser marking metal process

3. Beauty Salon, Nail Salon, Hair Salon

4. Lab, University, School

5. Printing & AD processing

6. Food, Pharmaceutical & Tobacco Manufacturing
