16 Wireless / Wired Zones Compatible Iron Box Alarm System 4common Personal Telephone Numbers

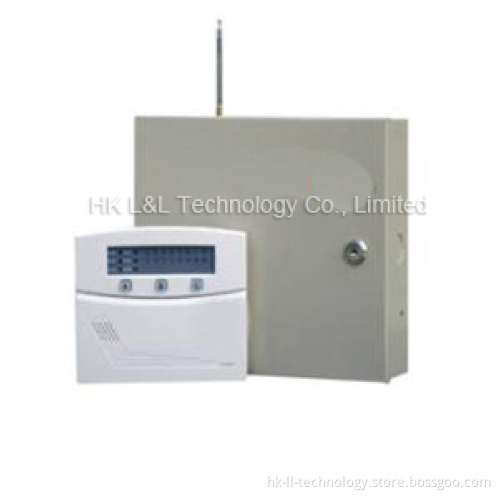

Wireless / Wired Compatible Iron Alarm Panel (L&L-8008-16)


Feature:
1: 16 programmable wireless defence areas
2: 16 programmable wired defence areas
3: 6 surveillance state: Outgo state, boundary state, single area state, time-lapse state, long-distance state and force state.
4: 3ways of cancel surveillance: Keyboard, long-distance and alarm
5: 2 revisable user codes and 1 revisable setting code. 10-20s voice record, voice alarm
6: Long-distance control and monitor the emergency area
7: 4common personal telephone numbers and 1 emergency area.
8: Compatible with Contact ID 4+2 communcation protoct
9: Auto repeated dial the setup telephone number 220VAC power supply
10: 4keyboard at most
11: Watch dog funcation
12: Alarm for the telephone line loss, AC power losr and keyboard anti-tamper

Basic allocation
Host iron box: 1 set (Transformer, Mother board inside)
Keypad: One
Use manual: One
Accessory bag: One phone line, one bag Terminal electric resistance

Technique function:
Power supply: AC220V+_10%
Static current: ≤ 50mA
Power: Less than 1.5W
Alarm output: 12V 400mA above
Output voltage: DC12V--15V
Wireless receives frequency: 315MHz
Environment temperature: -10-55 degree
Humidity: 40-70%
Weight: 3kg
Iron box size: 255mm*235*870mm
Keypad size: 159mm*138*33mm
