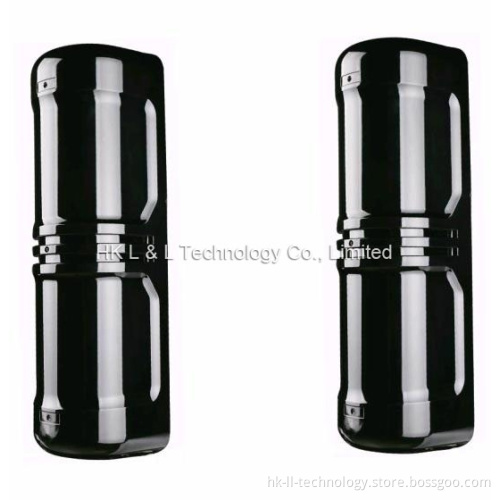

Outdoor/ Indoor Four Photoelectric Infrared Beam Detector High Quality

Technical Specifications:

(Outdoor /Indoor)

Model ABT-50 ABT-100 ABT-150 ABT-200 ABT-250

Reconmmedned Protection Distance Outdoor 50m 100m 150m 200m 250m

Indoor 150m 300m 450m 600m 750m

Max. Arrival Distance 450m 900m 1350m 1800m 2250m

Infrared Beam Three beams

Detection System Simultaneous Cut-off Three Beams

Light Source Plused Infrared

Response Time 50-700ms, Adjustable

Alarm Output Relay On/Off output, Rating: AC/DC 30V 500mA max

Power Supply 13.8-24VDC or 11-18VAC

Current Consumption TX 60mA 60mA 60mA 60mA 60mA 60mA

TX

Working Temp -25 to 55 degree

Tamper Output NC Contact, Rating: 24Vdc/500mA max.

Optical Axis Adjustable Angle (Horizontal) 180 degree(+_90 degree)

Optical Axis Adjustable Angle (Vertical) 20 degree(+_10 degree)

Measure for moisture/forst/ dew Heating Cover(Optinal)

Material Polycarbonate(PC)

Weight 1.5Kg

Remarks Black Color
