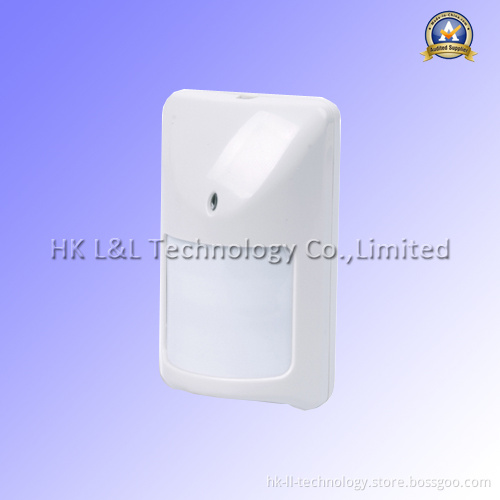

Indoor Wired PIR Motion Detector with Pet Immunity Function

Wired PIR Motion Detector with Pet Immunity (L&L-PT210) motion detector

Description:
(1): The PIR is an excellent solution for cost effectie residential applications
(2): The PIR is a wide angle 10mX10m with high catch performance and false alarm immunity.
(3): The PET is an excellent solution for cost effective PET immune residential applications.
(4): The PET is 8m(26')90 degrees pet immune Detector with immunity up to 42lbs. (20Kg. )dog, 2 cats or multiple rodents
(5): Do not mount the unit in direct sunlight or near heat sources.
(6): The detector needs to be located so that an intruder will cross the infrared beam pattem.
Terminal connections:
12VDC: Power supply input
Alarm: NC dry contact reply
Tamper: NC dry contact relay seal holes
Specifications:
(1)Operating voltage: DC 9-16V
(2)Current: 12mA at 12V
(3)Alarm contacts: 0.1 amps, 24V, N. C.
(4)Tamper contacts: 0.1amps, 24V, N. C.
(5)Automatic temperature compensation
(6)Operating temp.: -10 to +50 degrees
