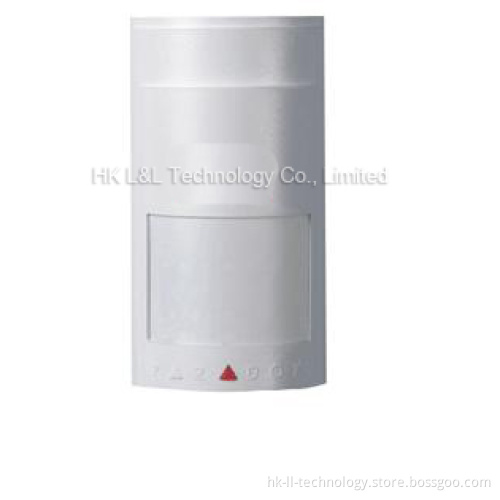

Indoor Intelligent Dual Element Rectangle Mic + PIR Motion Detector

MIC+PIR detector PIR sensor ,motion detector for alarm system
Model No: L&L-525D


Feature:
The digital vision combines a suprior performance infrared mation detector with a state-of-the are microwave detection unit.
A: Digital Motion Detection
B: Digital shield alagorithm sofeware
C: Digital Microwave Detection
D: Digital Auto pulse signal processing
F: Digital Temperature compensation

Technique index
Sensor type: Dural element, rectangle
Detector range: 14m*90`(standed lens),
16m*18`(long distance lens)
Sensibility: 2 layers adjustable
Principle: Duopule(effect) +energy analyze
Self-testing: Microwave check
Working temperature: -20`c~+50`c
Input supply: 10 16VDC 30MA
Installration height: 2.1m+/-10%
Alarm derection: Red LED flashes 3s( off optional)
Alarm output: NC 28VDC 0.15A
Tamper device output: NC 28VDC 0.15A
Size: 66*127*52mm(w*h*d)
