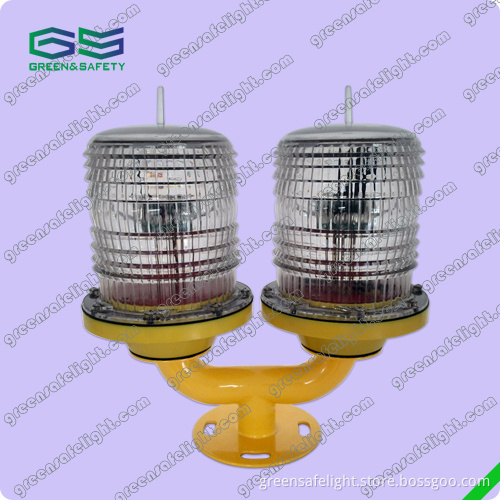

GS-Ls/T Low-Intensity Double Solar Powered Aircraft Warning Light

Advantage

1.PC material with good impact protection strength, thermal stability, high transmittance.
2. Bird spike against bird drop.
3.International advanced solar panel reaching at least 10 years service life.
4.Comprehensive protection in voltage short, over voltage, floating Charge and temperature.
5.New technology application.Light can work at night automatically by solar panel which function is equal to photocell sensor.
6. International-advanced cold LED with low power consumption, high brightness and service life of light source reaching 100000hours.
7. Major Maintenance Cost Saving,Surge protection device inside light.
8. Strong corrosion resistance, Shock and Vibrations protection and UV protection.
9.At least 7 days autonomy.(optional 15days)
10.3/4 inches installation way especially for tower or flag-pole installation way.

Function
GS-LS/T Low-intensity Double Solar-Powered Aircraft Warning Light has one solar panel which function is equal to photocell sensor,threaded bolt for grounding and one switch which can convert two flashing mode.One is both lights working flashing 1.5 second interval;The other is both lights flashing at the same time.Panel angle can be changed from 15 degree to 30 degree, lateral panel base.Installed in the fuse, it can work alone automatically when ambient brightness is lower than 500cd/m2.

Scope of Application
This Light can be provided with power supply without power transmission cables by solar power, so it is suitable for those locations,Electric Tower,High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Turbine,etc especially which are hard to lay the cable or lack of power supply as well as those facilities which have high requirements on lightning protection.

Main Parameter
1.Mode:GS-LS/T
2.Standard:FAA L-810 ,ICAO Annex 14
3.Light intensity:≥32.5cd(optional 10cd)
4.Flash rate:Steady-burning mode or Flash mode(20-60times/minute)
5.Light source:LED,100,000hours service life
6.Operating voltage:DC 6.4V(Solar powered Way)
7.Power Consumption:3W
8.Overall Size(mm):330 by 158 by 340
9.Installation Size:Φ100 by M10 or 3/4inches
10.Weight:2.5Kg
11.Emitting Color:Red
12.Ambient Temperature:-40ºC~+70ºC
13.Wind load:80m/s
14.Protection Standard:IP65


Dimension Drawing

Product Profile

1.Model: GS-LS/T
2.Applications: Applied to High-rise Building, High Chimney, marking towers (Telecom, GSM, Microwave & TV),High Pole,Tower Crane, Wind Tubinebridge.large-scale port machinery,large engineer machinery and wind turbines.
3.Standard: ICAO Type B low intensity and FAA L-810
4.Certificate: CAAC Certificate(ICAO Certificate) and FAA Certificate
5.Improve Records:None
6.Fault Records: None
7.Quantity/Delivery Day: 20 pcs / 10 Days
