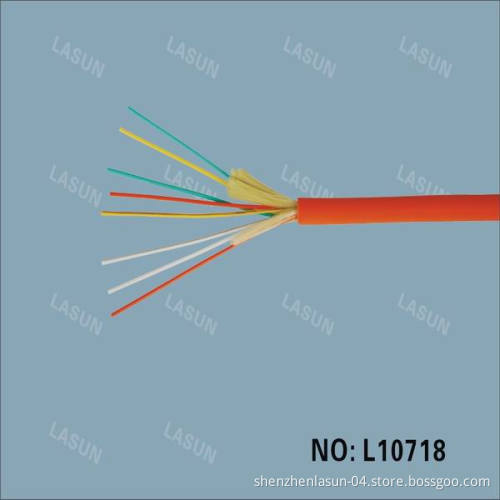

Fiber Optic Patch Cable Multimode /Patch Cord (L10718)

Fiber Optic Cable Multimode (LA11205)/Patch Cord/Optical Patch Cable
Lasun's LightSystem 50 and 62.5 micron fiber cables are perfectly suited for the support of Gigabit Ethernet and Fast Ethernet applications at all horizontal work stations, riser, and short length backbone locations.

Compliance
ISO/IEC 11801: 2002 (OM1)
TIA/EIA-568-B. 3
TIA-598-C
LS0H: IEC 60332-1, IEC 61034, IEC 60754
Communications Type OFNR (UL) and CSA FT4 c(UL)
Communications Type OFNP (UL) and CSA FT6 c(UL)
Cable Construction
Tight buffer design for easy connectorization
Flexible, lightweight for ease of installation
Thermoplastic outer and inner (sub-unit) jackets
Aramid yarn strength members
Dielectric central strength member
Color coded per TIA-598-C
Highlights
900µ M tight buffer
250µ M coated optical fiber
Length markings in 2 ft. Increments
Available in OFNR and OFNP constructions
Jacket material is lead free
Packaging
Reels
Standards Compliance
ISO/IEC 11801: 2002 OM1 (62.5/125)
ISO/IEC 11801: 2002 OM2 (50/125)
ANSI/TIA/EIA-568-B. 3
ANSI/TIA-598-C
Telcordia GR-409-CORE
OFNR: Communications Type OFNR (UL) and CSA FT4 c(UL)
OFNP: Communications Type OFNP (UL) and CSA FT6 c(UL).
