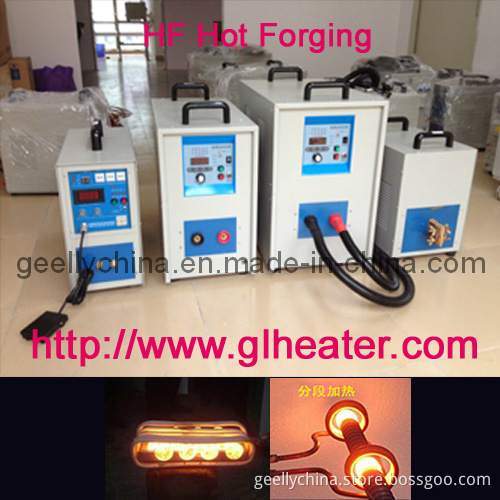

Induction Heating Equipment/Quenching/Heat Treatment

Get Latest Price

Payment Type:: L/C, T/T, Money Gram, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Money Gram, Western Union

Product Description

Model:
GHF-50B Normal,GHF-50AB With time

Main characteristics:
1,IGBT module and Inverting technologies of second generation been used; Higher reliability and lower maintenance cost.
2.100% Duty cycle, continuous working is allowed at maximum power output.
3.Constant current or constant power status can be selected accordingly to achieve higher heating efficiency;
4.Display of heating power and heating current and oscillating frequency;
5.Protection of over voltage, over current , water fail, output frequecy isn't right , light load and more.
6.Simple to install, Installation can be done by unprofessional person very easily;
7.Advantages of the model with timer: the power and the operating time of the heating period and the retain period can be preset respectively, to realize a simple heating curve, this model is suggested to use for batch production to improve the repeatability;

Installing Desire:
1,power supply wire:10mm2 soft copper; Ground wire 6mm2 soft copper;
2,cooling water desire:clean and not easy to scale,Inlet water temperature 25-36degree;water pressure and flow : 0.2Mpa, 10--20L per minute;
3,cooling water system:running water; circulating water from a pump to a tank ; use an industry refrigerate machine.

Typical Applications:
Brazing of the Wooden tools
Brazing of the diamond blade, grinding, trimming wheel, tangent round
Quenching of the hammer surface
quenching of the gear
Annealing of S.S. tube
Forging of Rod
Heating the pot for melting

Induction Heating Equipment/Quenching/Heat Treatment

Model	Input power	Frequency	Input voltage	Duty cycle	Heating current	Retaining current	Time control	Size CM/weight
GHF-50B	50KW	30-80KHZ	380V,415V,480V, 50/60Hz, three-phase	100%	10-105A			Generator: 602650/40KG Transformer: 512740/39KG
GHF-50AB	50KW	30-80KHZ	380V,415V,480V, 50/60Hz, three-phase	100%	10-105A	10-105A	1--99s	Generator: 602650/40KG Transformer: 512740/39KG
Cable lengthfrom generator to transformer is 2 meters, and max. length is 6 meters
