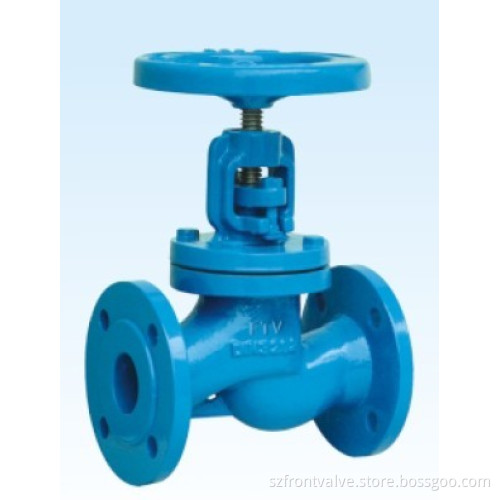

Cast Iron/Ductile Iron Globe Valves-Flanged End

Get Latest Price

Payment Type:: L/C, T/T, D/P

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, D/P

Product Description

Cast Iron/ductile iron Globe Valves,cast iron flanged globe valve

Standard compliance:
1) Design and manufacture: MSS-SP-85, BS5152, DIN2533
2) Test and inspection: MSS-SP-85, BS6755, DIN3230
3) Face to face dimensions: ANSI 16.10, BS5152, DIN3202 F1
4) Flanged end: ANSI 16.5, BS4504, DIN 2533

Specifications:
1) Size: 1/2" to 12"
2) Class: PN10, PN16.125LB, 150LB, JIS5K, JIS10K
3) Type: Bolted Bonnet, rising stem, brass/bronze/stainless steel seat ring.
4) Material: CAST IRON, DUCTILE IRON
5) Operation: Hand wheel
