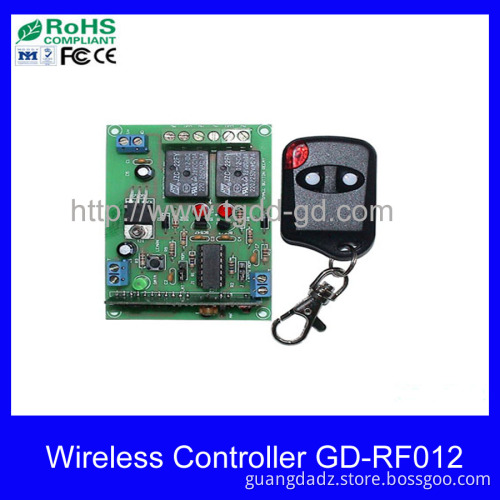

RF Two Channel Control Receiver, on/off Remote Controller with CE Approval (GD-RF012)

RF Two Channel Control Receiver, ON/OFF Remote Controller with CE Approval (GD-RF012)
RF Two Channel Control Receiver, Rolling Code Transmitter and Receiver (GD-RF012)
RF Two Channel Control Receiver, Transmitter and Receiver


Feature:
Voltage: DC12 V
Working Current: 48mA
DC/AC Control Voltage: DC28V
AC220/250V
DC/AC Control Current: DC10A
DC5A

To learn a remote into the receiver:
To learn a remote into the receiver, press and release the LEARN button on the board, and then press any button on the remote three times.

Once learned successfully, press the remote button, then the receiver will make a sound and the LED light will flash. Please note that if you use a multi button remtoe, the buttons are predefined.

If a remote was lost, and you want to learn other new remotes, just press the LEARN button for more than 8 seconds, this will erase all the data storage in the memory.


Advantages:
This model can match with 20 remotes.

We have two kinds: Latch type and mementory type. You could choose what you want.
