Irrigation Pump (For Endoscope System)
- Payment Type:
- T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T, Paypal, Western Union |
Product Description
Product Description
Product Description

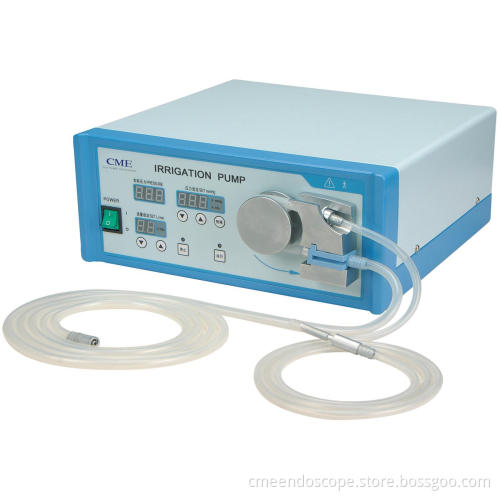

Irrigation Pump
Model: LC-V50
1. Description
Irrigation Pump is the device that digisplay rinse, expand and pressurizing in cavity, control by open full automatic microcomputer, produced by our company. It will make visual space in cavity use liquid medium expanding and pressurizing, also can clear bloodiness in cavity, make view of observe and operation more clearer. Apply to all kinds of endoscopy operation. The device set a bearable pressure must accord to different operation command.
Use specified pressure expand and pressurizing in cavity, For example in hysteroscopy operation, set pressure oughtn't to above 140mmHg(18.6kPa), flow rate 0.3L/min, protect safety of patient. When inject liquid into cavity and wash, use larger setting pressure and flow rate in ordinary course of events.
2 Normative collocations
1) Host machine
2) Sterile tubing sets with sensor
3) Shim of sensor(2pcs),Emulsion tube(2pcs)
4) Power cable
3 Technical Data:
1) Power Supply AC 100-240V 50/60Hz 2A 100W
2) Safety type I/BF
3) Working atmosphere +10°C-40°C
4) Humidity: 30%~75%
5) Working noise 50dB(A)
6) Air pressure 50~106KPa
7) Range of set pressure value 15~400mmHg(2~53.3kPa)
8) Range of set flow capacity value 0.1~1.0L/min
9) Run mode Intermittent load/Continual run
10) Fuses φ5×20mm 150V/250V 2A
11) Size 360*315*160mm
12) Weight 9 Kg
4 Function and Features:
1) This equipment is an open pressure device; it's convenient to add liquid media and cleaning fluid during operation, it's only necessary to put liquid and cleaning fluid into container.
2) In order to guarantee operation continuity and surgery needs, liquid media and cleaning fluid can be add enough more at one-time if the vessel big enough.
3) Step motor-Driver adopted, running stable, lower noise.
4) The working pressure and flow equipment automatically controlled by computer, computer will cut off power automatically when it's over-voltage and stop working, control device is safe and reliable, the instrument will automatically enter the normal working condition when the pressure returns to normal situation.
5) Pressure setting range: 15~400mmHg (2~53.3kPa), adjustable with digital display, presuming value can be freely set according to practical work.
6) Flow setting range: 0.1 ~ 1.0 L/min, digital display continuously adjustable. Setting value can be arbitrarily changed according to practical work.
7) This equipment has capacity of memory, setting values will be shown the previous pressure and flow rate when power turned on.
Model: LC-V50
1. Description
Irrigation Pump is the device that digisplay rinse, expand and pressurizing in cavity, control by open full automatic microcomputer, produced by our company. It will make visual space in cavity use liquid medium expanding and pressurizing, also can clear bloodiness in cavity, make view of observe and operation more clearer. Apply to all kinds of endoscopy operation. The device set a bearable pressure must accord to different operation command.
Use specified pressure expand and pressurizing in cavity, For example in hysteroscopy operation, set pressure oughtn't to above 140mmHg(18.6kPa), flow rate 0.3L/min, protect safety of patient. When inject liquid into cavity and wash, use larger setting pressure and flow rate in ordinary course of events.
2 Normative collocations
1) Host machine
2) Sterile tubing sets with sensor
3) Shim of sensor(2pcs),Emulsion tube(2pcs)
4) Power cable
3 Technical Data:
1) Power Supply AC 100-240V 50/60Hz 2A 100W
2) Safety type I/BF
3) Working atmosphere +10°C-40°C
4) Humidity: 30%~75%
5) Working noise 50dB(A)
6) Air pressure 50~106KPa
7) Range of set pressure value 15~400mmHg(2~53.3kPa)
8) Range of set flow capacity value 0.1~1.0L/min
9) Run mode Intermittent load/Continual run
10) Fuses φ5×20mm 150V/250V 2A
11) Size 360*315*160mm
12) Weight 9 Kg
4 Function and Features:
1) This equipment is an open pressure device; it's convenient to add liquid media and cleaning fluid during operation, it's only necessary to put liquid and cleaning fluid into container.
2) In order to guarantee operation continuity and surgery needs, liquid media and cleaning fluid can be add enough more at one-time if the vessel big enough.
3) Step motor-Driver adopted, running stable, lower noise.
4) The working pressure and flow equipment automatically controlled by computer, computer will cut off power automatically when it's over-voltage and stop working, control device is safe and reliable, the instrument will automatically enter the normal working condition when the pressure returns to normal situation.
5) Pressure setting range: 15~400mmHg (2~53.3kPa), adjustable with digital display, presuming value can be freely set according to practical work.
6) Flow setting range: 0.1 ~ 1.0 L/min, digital display continuously adjustable. Setting value can be arbitrarily changed according to practical work.
7) This equipment has capacity of memory, setting values will be shown the previous pressure and flow rate when power turned on.
