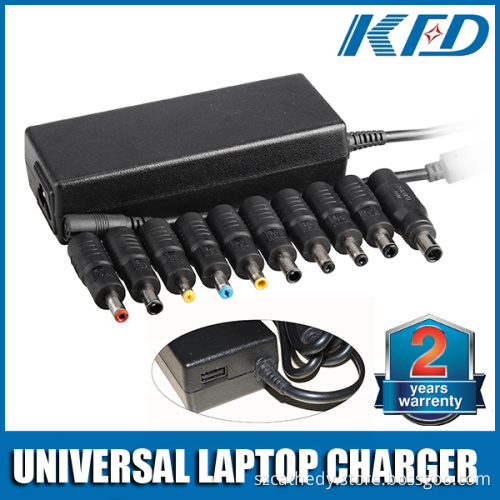

90W Universal Adapter with 10 Pins Universal Laptop Power Supply

90w Universal Adapter  With 10 Pins Universal Laptop Power Supply



Features:

Compact 90 Watt universal notebook power adaptor For Family

Equipped with 8 different notebook connectors and selectable power output to assure

Switchable 19V4.74A/15V/16V/12V5A/   20V4.5A/19.5V4.7A/18.5V4.9A DC notebook power output

Protected against overload ,short circuit and overheating.

Adjustable output voltage

With AC and DC input Cable

With 8 interchangeable tips

Suit for most brand laptops

CE,RoHS ,etc.

Rated input voltageAC 110 240 V

Dimension 135 (L) x 63 (W) x 37 (H) mm

Input Rated Current 15A MAX/1.8A

Output Current15, 16,18,19,20V  / 4.5A  22, 24V / 3.75A

Input Power 90W

Efficiency  >88% TYP

Output voltage

DC12V/15V/16V/18V/19V/20V/24V(-0.4/+0.5V 4A load)

DC15 24V(max)

USB port :5V (0~0.8V No load) USB 5V

Output Power 90W

Output power over temperature protection:>105 degree YES

Input over voltage protection: >16V YES

Battery low voltage protection:<10.5V (±0.3V) YES

Short Circuit Protection YES

Ripple Noise 500mv

Line regulation 1%

Load regulation1%
