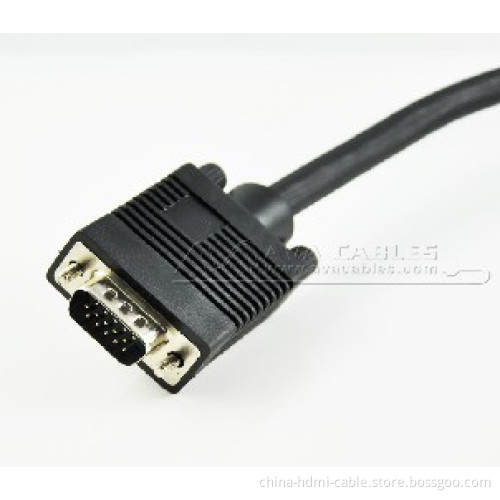

VGA Cable Male to Male (VC001)

VGA 15PIN TO VGA15 PIN CABLE
1)HIGH QUALITY VGA CABLE
2)3+2, 3+4, 3+7, 3+8, 3+9, 15P/15P, M-M, 2filters
3)Gold or Nickel Plated
4)Be effective from 1M to 100M
Specification:
Basic Descriptions
1). VGA TO VGA cable;
2). HD 15P to HD 15p;
3). Connector: Gold plated or Nickel plated (optional );
4). Length: 1m to 30m respect customer request;
5). Color: Blue, white, black ( optional );
6). Two ferrites.
Features
1). Totally matches with the requirements of VGA;
2). Meet all the requirements of reliability test and electrical test;
3). Can be used in most kind s of, computer, LCD and projector.
Electrical
1) Quality Control: 100% Open& Short Test, passed four tests;
2) Voltage: DC300V 5M ohm/10ms;
3) Insulation Resistance: 10 OHM min
4) Contact Resistance: 2 ohm max
5) Working Temperature: -25C-80C
