Thermal Resistance Rtd PT100 Temperature Transmitter Signal Isolation Amplifier IC

Thermal Resistance  RTD pt100 temperature transmitter Signal Isolation Amplifier IC
Feature:
Three-wire, four-wire or two-wire PT100 thermal resistance signal input
Accuracy, Linearization error grade: 0.2
Linearization disposal and long line compensate circuit
Industrial temperature range: - 45 ~ + 85
Application:
PLC/DCS systemic temperature signal isolation, acquisition.
Industrial high accuracy temperature measurement
Thermal resistance signal isolation and temperature control
Ground-loop elimination
Temperature sensor signal converter to standard signal
Oil temperature measurement and alarm
No distortion in long distance signal transmission
Electric supervision, medical application and safe isolated bar.

Model Choose:

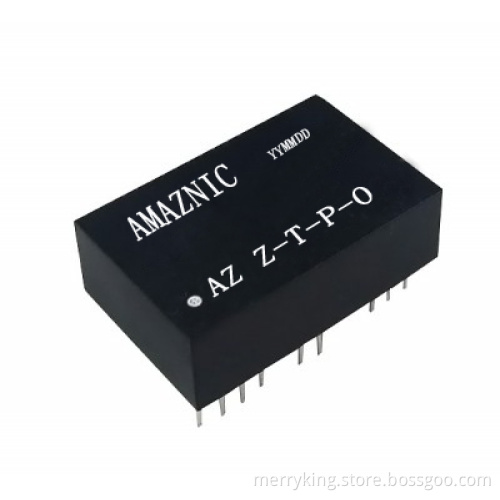

AZ  Z  T -  P  -  O
    Type
  Z1: Pt100  Z2: Pt10
  Z3: Cu100  Z4: Cu50 Z5: Pt1000

Input T Range
T1: -20-100
   T2: 0-100
   T3: 0-150
  T4: 0-200
   T5: 0-400
   T6: User-defined
Power Supply
   P1: DC24V   P2: DC12V
   P3: DC5V    P4: DC15V     PZ: User-defined
Output Signal
   O1: 4-20mA    O2: 0-20mA     O4: 0-5V     O5: 0-10V
   O6: 1-5V       OZ: User-defined
Example:
1.      signal Input: Pt100,temperature range:0~100; signal output:4-20mA; power:24V
Part No.: AZ Z1-T1-P1-O1
2.      signal input: Cu50,temperature range:0~100;signal output:0-5V;power:12V
   Part No.: AZ Z4-T2-P2-O4

Typical application:
