4-20mA Two Wires Loop Powered Isolotor Module IC

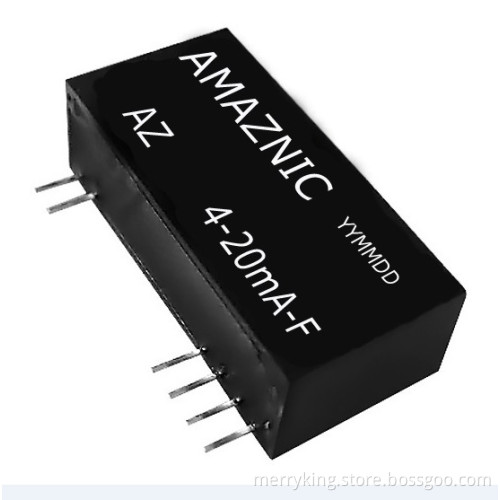

4-20mA Two Wires Loop Powered Distributor Module (AZ 4-20mA-F)
Feature:
· Supply power for sensor: 24VDC
· 4-20mA Signal loop input
· High linearity (Nonlinearity<0.5%)
· Low cost, small size, standard SIP12 package
· 4-20mA signal input/Output, 3000VDC isolated voltage
· Industrial temperature (-45— +85degree)
· Panel or DIN Rail mounted
Dimension: ( 32*14.2*8.9mm)
Application:
· PLC, DCS analog signal data acquisition and isolation
· Industrial process 4-20mA signal isolation
· Ground-loop elimination
· No distortion in long distance signal transmission
· Instrument signal acquisition
· Electric supervision, medical application and Isolated safe bar
