4-20mA Modbus RTU Converter by RS485

FEATURES
Field-Bus remote data acquisition
RS-485/323 Master/Slave communication type
MODBUS RTU/ASCII protocol
4 channel input
Up to +/- 20mA and +/- 10v input
Watch-Dog Alarm
Remotely Configurable
3000 VDC 3-way Galvanic Isolation
High Accuracy: ± 0.05% (typical)
DIN rail suitable mounting
AD converter resolution: 24 Bit
Measuring Accuracy: ± 0.05% (typical)
Sampling rate: 20 times / sec (all channels)
Wide range power supply: 8 - 40V DC
Address / Baud rate / range configurable by the user
Supports MODBUS RTU protocol
± 15KV ESD protection
GENERAL DESCRIPTION

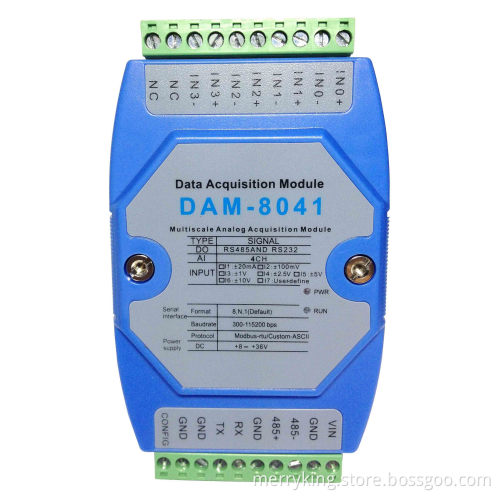

The isolated 4 channel mA input module DAM8041 is a Din Rail mount I/O Module. The input is mA/mV and V.
The DAM 8041 converts the analog signal to a 16 bit digital format. The data is transmitted by the MODBUS RTU/ASCII protocol on RS-485 or RS232.
The DAM8081 is equipped with two Watch-Dog timers. In case of alarm, the outputs are forced automatically to a fail safe condition. The digital outputs can also be used as trip alarms of the input analog signal enabling local control.
Remote 4 channel mA input module
