Rj11 Telephone Connectors/4p4c Plugs

RJ11 Telephone Connectors/4P4C Plugs for telephone cable
With gold plated Fu/3u"/6u/15u/25u/30u/50u.
Also supply 10P10C, 6P6C, 6P4C connectors for network communication.
1. Housing: Polycarbonate(PC) UL 94-0 or UL 94V-2
2. Contact: Phosphor Bronze
3. Gold plating: Fu", 3u" to 50u" gold plated

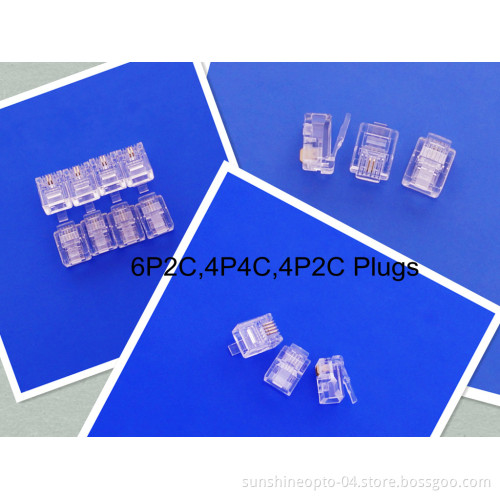

UTP RJ11 plug/ RJ11 connector/ 6p4c, 4p4c, 4p2c plug
Meet or exceed the requirement in the Cat 3/5E T568 A and T568 B (Telecommunication requirement)
Contacts are nickel plated, phosphor bronze with 3 to 50u" gold plate
Meets EIA/TIA 568 Cat3 Cat5 specification
Exclusive stagger conductors guide design reduces near end cross talk
Accept 22-26 AWG solid with a insulation diameter of 0.4-0.64 mm
Contact blade: Phosphor bronze
We offer modular plugs in standard configuration terminate modular cords for patching or work area application, modular plugs can be terminated to the exact cable length in order to maintain a nearer, more organized installment, the plugs terminate twist pair cable with 22-26 AWG solid all plugs contracts have 50 micron inched of good plating over nickel.
8P8C, 8P4C, 6P4C, 6P2C, 4P4C, 4P2C
RJ11/RJ12/RJ45/RJ48 connector
UTP/FTP/STP/SFTP/SSTP
Color modular plugs
UK plugs are all available.
