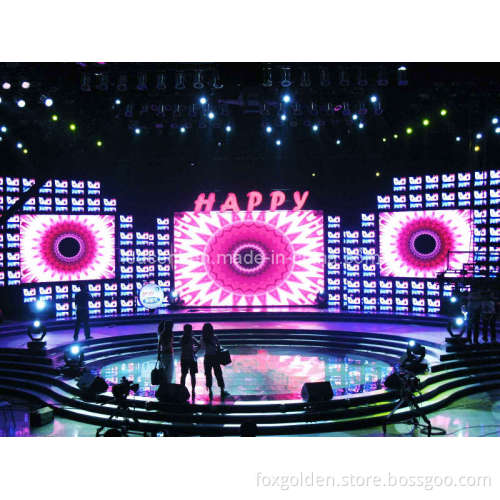

Visual Effect Full Color P10 SMD Indoor LED Stage Display Screen
- Payment Type:
- T/T, Paypal, Western Union
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | China |
|---|---|
| Payment Type: | T/T, Paypal, Western Union |
Product Description
Product Description
1. Big vewing angle
2. Warranty: 7years
3. Low power consumption
4. High resolution, High brightness
5. Support TV, S-Video, DVI, AVI, MOV.
6. Certification: CE, RoHS, UL, SGS
2. Warranty: 7years
3. Low power consumption
4. High resolution, High brightness
5. Support TV, S-Video, DVI, AVI, MOV.
6. Certification: CE, RoHS, UL, SGS
| Description | Technical parameter | |
| Unit module | Module size | 320*160mm |
| Pixel pitch | 10mm | |
| Pixel density | 10, 000dots/m2 | |
| Pixel configuration | 3 in 1 | |
| Led specification | SMD5050 | |
| Pixel resolution | W: 16dots*H: 16dots | |
| Cabinet | Dimension | 960mm*960mm*170mm |
| Cabinet material | Aluminum | |
| Weight | 45 kg/sqm | |
| Quantities of module | 36pcs | |
| Power supply | 6pcs | |
| Thermal discharge | Fan*2pcs | |
| Total weight | 65kg | |
| Best viewing angle | 10-100m | |
| Temperature | Storage: -35~+85 | |
| Working: -35~+85 | ||
| Thickness | 17cm can adjustable | |
| Remarks: cabinet size can changed, upon project need. | ||
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 300-500W | |
| Max. Power consumption | ≤ 1000W/sqm | |
| Current | ≤ 20mA(single LED) | |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP | |
| Control method | Synchronization | |
| Main technical parameter | Driving device | 1/4scanning |
| Drive type | Constant Current driver IC | |
| Refresh frequency | ≥ 400Hz | |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color | |
| Brightness of white balance | More than 10, 000cd/sqm | |
| Brightness adjustment | 256 levels of each color(R/G/B)by software | |
| Operating ambient humidity | 10%--95% | |
| Video signal | PAL/NTSC | |
| Control system | DVI display card+full color controller card | |
| MTBF | ≥ 10, 000hours | |
| Life span | ≥ 100, 000hours | |
| Flatness | Tolerance of interpixel ≤ 0.3mm | |
| Tolerance of modules clearance≤ 0.6mm | ||
| Power switch | Automatic switch | |
| Display mode | 1024*768 | |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m.
Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
|
| Software | LED media player | |
