P10 SMD Indoor Full Color Stage Backdrop Display Screen

Get Latest Price

Payment Type:: L/C, T/T, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Paypal, Western Union

Product Description

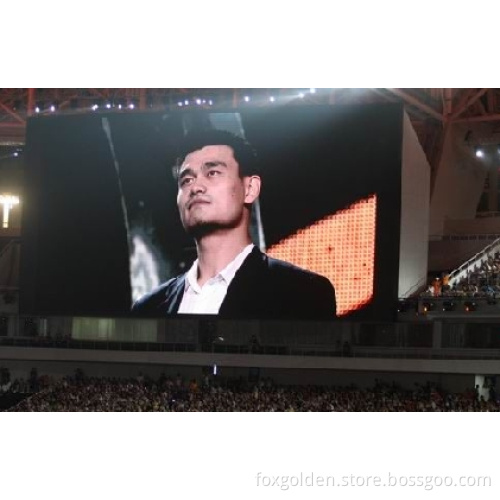

Stage full color LED display board:
1. High definition and vivid image
2. Easy assembly and diassembly
3. Relative low price
4. Professtional design
5. Big viewing angle
6. High qualiti and good service
7. Multi-language
8. Multi color and support
9. On-time delivery
10. Long life span

The technology parameter of P10 indoor
Number	Item	P10
1	Pixel pitch	10mm
2	Size of modual	160mmX 320 mm
3	Resolution of modual	16X 32
4	Density of pixel	2500dots/m2
5	Pixel configuration	1R1G1B
6	Red wavelength	625± 2nm
7	Green wavelength	525± 2nm
8	Blue wavelength	470± 2nm
9	Colors	16777216
10	Best viewing distance	10-120m
11	Horizontal viewing angle	140°
12	Maximum power consumption	≤ 1100w/m 2
13	Brightness	≥ 8000cd /m 2
14	Gray scale	16bits per color
15	Color temperature	6500k
16	Control method	Synchronization & Asynchronization
17	Driving method	1/4scanning
18	Frame frequency	60Hz
19	Refresh frequency	≥ 300Hz
20	Working voltage	AC220V/110V± 10%
21	IP grade	IP67(adjustable)
22	Working temperature	--20º C-+80º C
23	MTBF	> 10000 hours
24	Life span	> 100, 000 hours
25	Defects rate.	≤ 0.00001(Led display line standard< 0.0001)
26	Computer operation system	Win XP/Vista/ Win 2000/WIN7ect.
27	Video signal	RF, S-Video, RGB, RGBHV, YUV, YC. ect
