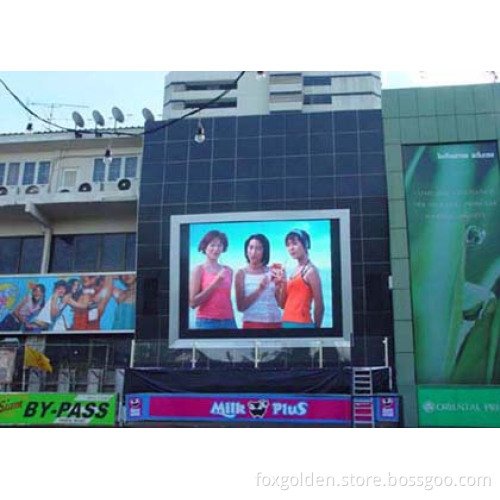

P40 Street LED Video Advertising Display Billboards Screen

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Western Union

Product Description

Specifications
Our factory is Specialised on Digital Billboards Advertising LED Display, 5 years warranty contact for more information 24h can recieve call.
P40 LED display
1. Premium quality
2. Competitive price
3. High brightness
4. Reliable service
P40 LED display:
Parameters:
Pixel pitch 31.25mm
Density 1024 pixel/sqm
Pixel composing DIP546 4R2G2B
Viewing angle 60(V)/110 (H) degree
Brightness 5500 mcd
Driving way Constant static
Control way Real pixel
Module size 125mm*250mm
Cabinet size 1000mm*1000mm
Cabinet resolution 1024 pixels
Cabinet weight 40 kg/sqm
Max consumption 500W/sqm
Avg. Consumption 180W/sqm
Voltage AC220, 50Hz or AC110, 60 Hz
Best view distance 39~104m
Cabinet material Iron/Aluminum
Power supply Taiwan Meanwell
Lifetime >100, 000h
Working temperature -20° C~+55° C
Gray scale 16bit
Function and Technology Character
1. Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
2. Information source can be camera, video, VCD, DVD, LD, TV and so on.
3. Clear picture without flicker and distortion.
4. Brightness, contrast, saturation can be adjust by itself and manual.
5. Show everything with your PC does synchronously.
6. Super correcting technology for distortion.
7. One interface for sound signal and two for video signal at least.
8. Connected and controlled by PC via LAN and remote control.
9. Multiform language editions, such as English, French, Germany, Greek, Russian and so on

PH40 mm 2 R1G1B full-color outdoor LED display
Pixel Configuration		2R, 1G, 1B
Physical/Real pixel pitch(mm)		40
Pixel density(dots/m2)(physical/real)		625
Calibrated Brightness		1600cd/m2(adjustable)
Color temperature		3, 500° — 9, 500° K(adjustable)
Contrast ratio		4, 000: 1
Brightness Adjustment		100 grade auto-adjustment
View angle(degree)(50% brightness)		Horizontal: 120° (60° off center); Vertical: 70° (+25° /-45° off center)
Color Capability		4.4 trillion
Interface port		DVI interface(DVI connector)
Input signal		Video: PAL/NTSC Optioned: VGA, video, DVD, TV
Protection grade		IP65 front side/IP54 backside
Operating temperature(Celsius degree)		-20~+55'
Storage temperature(Celsius degree)		-30~+55'
Operation Humidity(RH)		0-95%
Storage Humidity(RH)		0-99%
Lifetime(hours)(50% brightness)		100, 000 hours
Servicing		Front and Back
Power supply		220-380V/50-60HZ
LED Drive		constant static
Power consumption(W/m2): Maximum		200
Power consumption(W/m2): Average		70~90
Module Configuration(Pixels quantities of the module)	length	8
	height	8
Module Dimensions(mm)	length	320
	height	320
Cabinet Configuration(standard)(module quantities of the cabinet)	length	4
	height	4
Cabinet Dimensions(standard)(mm)	length	1280
	height	1280
