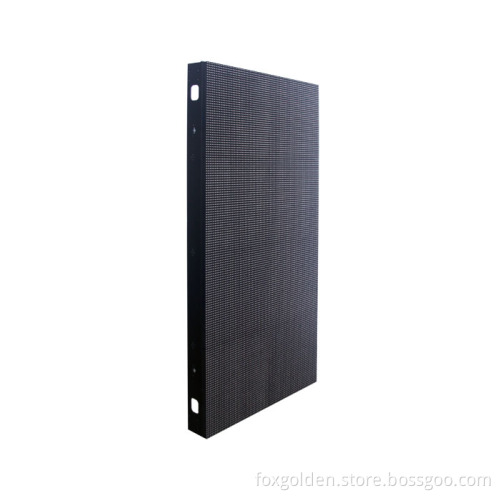

P6.25 Portable Extruded Aluminum LED Display

Free Radian Conjuction

2 Sets of radian locators make it possible to present image in concave and convex shape at customized radians.

Ultra Thin and Light Weight

9KG/cabinet makes it easy to carry and assemble.

Status Indicator

Status indicator on backcover lets you know the working status of LED cabinet without opening backcover.

Strengthening Ribs

The ribs effectively strengthens the construction of cabinet frame, and also can be used as carry handle

Item  P6.25 Indoor rental led mesh screen

  Pixel Pitch:  6.25mm

  Driving Method :  1/10



   LED type :  SMD3528

  Brightness:  ≥1300cd/

  Pixel density :  25600pix/

  Viewing angle:  120°H and 120°v

  Module Size(W*H):  250*250mm

  Cabinet Size(W*H*D):  500*1000*68mm

  Cabinet weight:  9kg

  Cabinet Material:  Aluminum sheet metal

  Avarage Power Consumption:  300 W/

  Max Consumption :  680 W/

  Refresh rate:  ≥900HZ

  Color Depth:  14bit

  voltage :  200-240V

  IP Rrating:  IP31

  Operating temperature :  -20-60 degree

  Storage temperature:  -40-70 degree

  Operation humidity:  10-90%

  Storage humidity:  10-90%

  Life span (hrs):  ≥50000

  MTBF (hrs) :  ≥3500

  Control system:  Linsn/Nova

  Source compatibility (with video processor):  YC, VGA, DVI, YUV, SDI, RGB,CVBS,GD-SDI

  Compliant standard:  CE,FCC,RoHS,ETL,CCC
