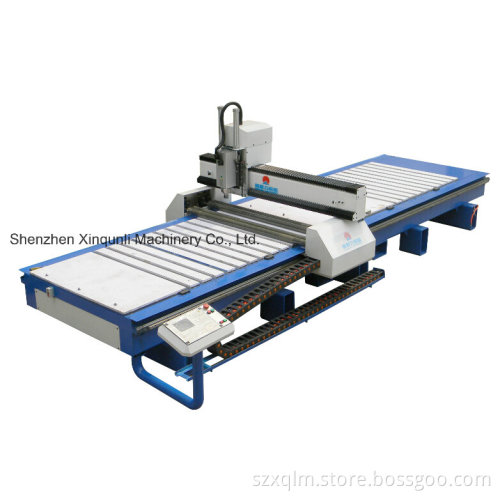

CNC Splint Cutting Machine (ESF101-3)

Two tables ,on table for loading and unloading ,one table for cutting .

The machine non-stop .One machine used as two machines. Capacity is 9mm

splint 300pcs/8hours




Products Describtion

Model:ESF101-2
CNC splint cutting machine

1. Suitable for sofa factory use CNC technology to cut and drill irregular board accutately .
2. Use intelligent 608 for control system .Files could be send through memory stick and network ,would sace huge files .Actualize offline operate .
3.Drive parts use CIFU motor.the maximum speed of the machine is 50m/min, and the maximum processing speed is 30m/min .
4. Use cylinder to clamp the board ,fast and accurate .
5. The part of working made by High precision square guideway and high presision screw rack .
6. There is Dust-removal system on the table , guide rail and rack is fully enclosed ,effectively improve the machine service life .
7. Frame and crossbeam are welding by thick steel tue . Advanced Frame Designs ,stable running ,wear well .
