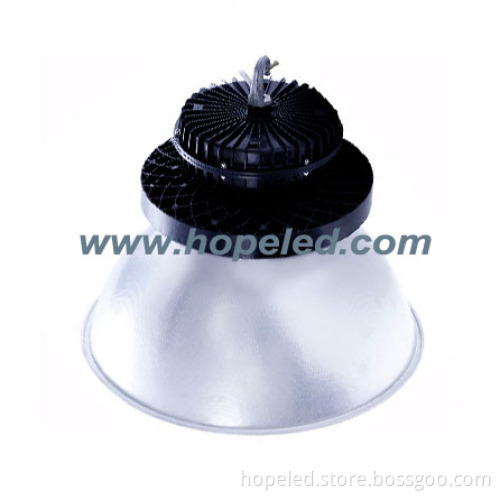

100-120W IP67 High Bay Light

High Quality LED High Bay Light, Bridgelux 45mil LED, Meanwell Driver, 3-Year Replacement Warranty!

LED High Bay Light specification:
1. Light Source: 1 piece 80W / 100W / 120W Bridgelux COB LED
2. Power: 80W / 100W / 120W
3. Luminous Flux: 6800~10500lum
4. Input Voltage: AC100-240V
5. Working Frequency: 50-60Hz
6. Angle: Reflector + PC lens or glass lens --- 45° , 90° , 120° Avialble
7. CRI: >75
8. Power Factor: >95
9. Efficiency: >80%
10. CCT: 3000-4000k 4500-5000k 6000-6500k
11. Size: Φ 470*H373mm (without hook)
12. IP Degree: IP65
13. Material of body: Aluminium alloy housing
14. Lifespan: 50, 000 hours

Normal types available


Dimension drawing



Features:
1. Ultra energy efficient;
2. Good heat dissipation with professional designed aluminum alloy housing;
3. Anti-glare, giving visual comfort;
4. Isolating circuit design, safety and reliability;
5. Solid-state, fast turn on;
6. No mercury, less CO2 emission, eco-friendly to the environment;
7. No UV, No IR;
8. Easily installed into standard fixture;
9. Longevity of service and minimal maintenance.
Component part
Thermal conductive radiator, aluminium transformer box and reflector, lifting hook, PMMA diffuser, Epistar or Bridgelux chip integrated encapsulated high power LED lighting source, super-wide voltage transformer.
Application:
It is suitable for Stage, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza, Workshop, Warehouse, Supermarket, Shopping Mall, Exhibition Hall, Gas Station, Highway Toll Station, Dock etc
