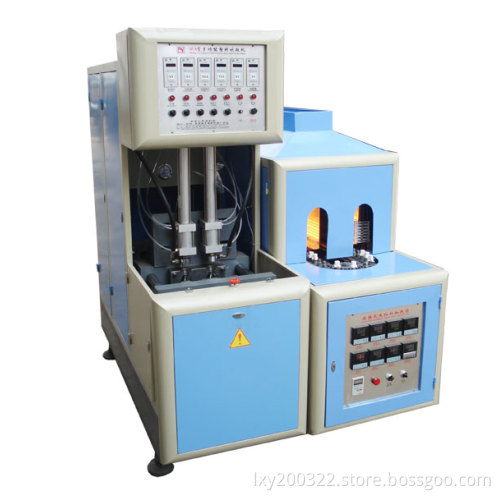

Semi Automatic Blow Molding Machine

Semiautomatic bottle blow molding machine can produce PET containers including the bottles for kinds of wine, drink, soybean, vinegar, and pesticide (less than 5liters) according to the different bottle shape and diameter. It has automobile system with high efficiency. The distant infrared ray heat pipe are used in the machine, It has high pressure protection with the feature of precisely removing mould, The machine has no noise, It? Is easy to maintain, It's the equipment for producing PET bottles.
Container:
Product material: PET
Container volume: 20 L
Theoretical output: 5gallon: 90 PCS/H
Prefom length: 15-460 mm
Preform inner diametrt: 15-200 mm
Mouding:
Max. Mould plate? : 420*500 mm
Dimenstion(L*W): 420*500 mm
Max. Mould thickness: 400 mm
Clamping force: 330 KN
Mould opening stroke: 330 mm
Machine size and weight:
Main machine(L*W*H): 155*82*200 cm
Main machine weight: 1 T
Heater (L*W*H): 242*65*160 cm
Heater weight: 0.38 T
