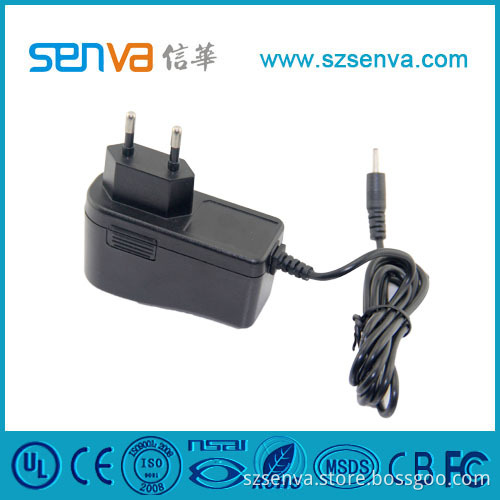

Wall Mount 18W Power Supply/Power Adapter (XH-18W-5V01-B1)

Wall mount 18W Power Supply/Power Adapter
Features:
Outer Shell Model No.: "12W"
Dimensions: 74*29*42MM
Input Voltage: AC100-240V (full range), 50/60Hz
Input Current (RMS): 0.4A
Output Voltage Range: 5V/± 0.5V
Output Voltage Regulation: ± 0.5% at constant voltage mode
Output Current Range: 0.1A-2.5A
Maximum Power (Po): 18W
DC Plug Size: 2.5*0.7*8-10mm
DC Cable Length: 1.2/1.5/1.8m (according to requirement)
Protection Fuction: Over-current/voltage and short-circuit
Load Regulation: ± 0.5%
Detailed Product Description
Operating Temperature: 0-40
Storage Temperature: -20-75(regular work after two hours in normal temperature)
Operating Relative Humidity: Max. 95%
MTBF: ± 50, 000 hours
AC Plug: European standard(UK/AU/JP/American plugs, etc. Can be custom-made) Safety Approved Certification: UL, CE, RoHS, CB, ISO9001: 2008, NSAI, MSDS, etc.
Rippel and Noise: ≤ 100MV
Net Weight: 0.073KG
Package: White box or Poly bag
Input Characteristics
1 Input voltage
Rated Voltage AC 100-240V
Variation Range AC 90~264V
2 Input Frequency
Rated Frequency 50/60Hz
Variation Range 50~70Hz
3 Input Current
1A mps max at any input voltage and rated, DC output rated load.
4 Inrush Current
50Aamps max. Cold start at 100-240VAC input, with rated load.
5 AC Leakage Current
0.25mA Max. At240VAC input.
Why choose us?
1. Professional manufacturer with the experience of 9 years for producing & 5 years for exporting, etc.
2. Factory direct sales with competitive price but high quality
3. Many certifications, e. G.: UL/CE/FCC/CB/RoHS/NSAI/MSDS/IOS9001: 2008, etc.
4. Quick response
5. Small MOQ
6. Strong OEM/ODM ability
7.10 minutes to airport
8. Best service
Shenzhen Xingyuan Senva Technology Co., Ltd
As a leading manufacturer of switching power supplies, we supply AC/DC adapter, desktop power adapter, wall mount adapter, LED power supply, security power adapter, USB car charger, USB power adapter.
If you are interested in Senva`s products, welcome to contact us for more details!
Contact name: Cindy Lee
