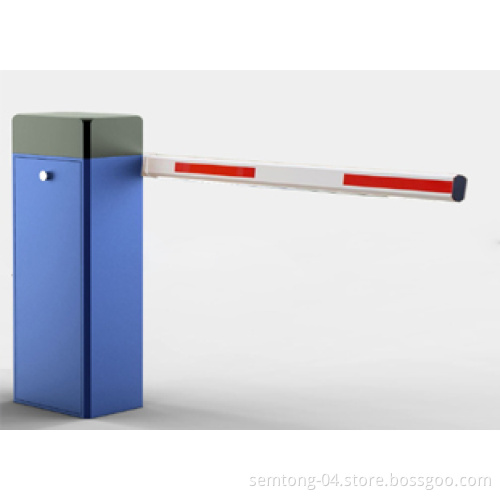

Automatic Parking Barrier for Parking System

Product brief introduction
The SP-5025A barrier gate is suitable for vehicle flux control of the access, and has the following new improvement:
¯ Unique design for housing, with features of compact and smart looking.
¯ Full molding design for all the main parts, cast by aluminium alloy, realizes precisely match for each components, realizes nonrusting and corrosion-resistant in atrocious weather.
¯ Advanced manual release.
¯ Compact design of machine core adopts big reduction ratiotechnology, realizes machine core more compact and smart looking.
¯ Unique transformed boom can rise and fall on left rught sides under the direction.
¯ Just need one standard of balance spring can suit to all length of booms, no need to change the spring.
Function and Features
¯ Unique manual release can stop the boom at any angle, Auto when power on.
¯ Boom can rise and fall on left /right sides by setting on the machine.
¯ One balance spring is suitable for all types of boom.
¯ Unique remote controller, 3 buttons to control the barrier safety and easy using.
¯ Support the INFRARED PHOTOCELL for anti-bumping further(optional)
¯ Support the external and internal VEHICLE LOOP DETE(optional)
¯ Auto pass (optional)
¯ Machine core can automatically adapt to low temperature.
Technical Data
Working temperature-40± 85
Power supplyAC 220V/110V ± 10% 50/60MHz
Rated power120W
Idle rotating speed: 1400r/m
Insulated grade B grade
Remote control distance: 50 meter
Max boom weight: 12kg
Max boom length: 6 meter
