DC to AC Inverter 1kw-6kw LCD LED
  • DC to AC Inverter 1kw-6kw LCD LED
DC to AC Inverter 1kw-6kw LCD LED

DC to AC Inverter 1kw-6kw LCD LED

Get Latest Price
Payment Type:
L/C, T/T, Western Union
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Place of Origin: China
Payment Type: L/C, T/T, Western Union
Product Description
Product Description

Product Description

DC to AC Inverter 1kw-6kw lcd display

1.  dc to ac inverter in large battery charge current, 70amp max for fast compensate battery discharge
     and 3-stage intelligent charge control
     full battery protection: over-charge, over-discharge
     externally connected SLA battery provide solution via dc-ac inverter when ac blackouts

2.  power-saving home power inverter with wide input ac voltage range 155-285v, solving ac-brownout
     problem better and avoiding frequently transfer to battery discharge(battery-mode), extending battery
     service time

3. Advanced adjustable charge current designed Dc to Ac inverter helps to protect battery better to avoid
    unexpected damage from too large charger current.

4.  Optional battery in priority design: home inverter in a little narrow input range of 180-265vac
     secure home electronics power solution from home inverter power supply

5.  Dc to Ac inverter optional RS232 communication interface and winpower software cd  finish inverter
     communication conveniently, and easily.
     RS232 display inverter load status, Ac power status, battery remaining capacity, battery voltage
     clearly

6.  Dc to Ac inverter optional remote On/Off design finish inverter Turn-on/off conveniently and easily
     via a 10 meters effective length data-cable.

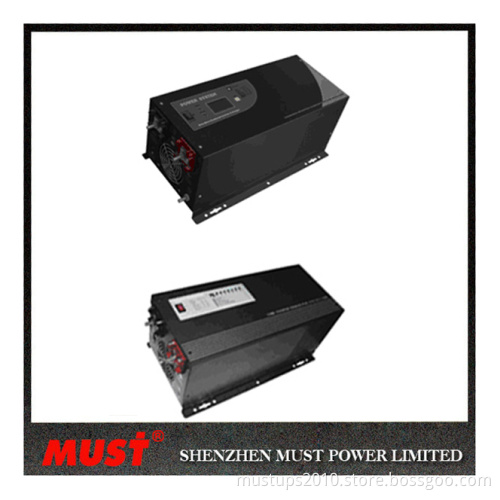

dc to ac inverter 1kw to 3kw electrical view:

DC to AC Inverter 1kw-6kw LCD LED

home power inverter 4-6kw:
DC to AC Inverter 1kw-6kw LCD LED
sine wave power inverter Led panel
DC to AC Inverter 1kw-6kw LCD LED
dc to ac inverter EP3000 Model
1012E 1024E 2012E 2024E 3024E 4048E 5048E 6048E
Line Mode Specifications:
Input Voltage Waveform Sinusoidal (utility or generator)
Nominal Input Voltage 230Vac(120VAC selectable)
Low Line Disconnect 184Vac±4%
Low Line Re-connect 194Vac ±4%
High Line Disconnect 265Vac±4%
High Line Re-connect 255Vac±4%
Max AC Input Voltage 270Vrms
Nominal Input Frequency 50Hz/ 60Hz  (Auto detection)
Low Line Frequency Re-connect 58+0.3Hz for 60Hz;48+0.3Hz for 50Hz;
Low Line Frequency Disconnect 57+0.3Hz for 60Hz;47+0.3Hz for 50Hz;
High Line Frequency Re-connect 64+0.3Hz for 60Hz;54+0.3Hz for 50Hz;
High Line Frequency Disconnect
65+0.3Hz for 60Hz;55+0.3Hz for 50Hz;
Output Voltage Waveform As same as Input Waveform
Over-Load Protection(SMPSload) Circuit breaker
Output Short Circuit Protection Circuit breaker
Efficiency (Line Mode) >95%
Transfer Switch Rating 30A
Transfer Time (Ac to Dc) 10ms (typical)
Transfer Time (Dc to Ac) 10ms (typical)
Pass through without Battery Yes
Max Bypass Overload Current 30A
Invert Mode Specifications:
Output Voltage Waveform Sine wave
Rated Output Power (VA) 1000 2000 3000 4000 5000 6000
Rated Output Power (W) 1000 2000 3000 4000 5000 6000
Power Factor 0~1.0
Nominal Output Voltage (V) 230Vac
Nominal Output Frequency (Hz) 50Hz ± 0.3Hz
Auto tracking Main Frequency(Hz) Yes (Following Main first connection)50Hz @48-54Hz ;60Hz @58-64Hz
Output Voltage Regulation ±10% rms
Nominal Efficiency >80%

Over-Load Protection
(SMPS load)		 (110% 150% ±10%:  Fault (shutdown output) after 20s;
Surge rating (10s) 3000VA 6000VA 9000VA 12000VA 15000 VA 18000VA
Capable of starting electric motor 1 HP 1 HP 2 HP 3 HP
Output Short Circuit Protection Current limit (Fault after 10s)
Inverter overload Breaker Size 30A 30A 30A 35A 50A
Nominal DC Input Voltage 12V 24V 12V 24V 24V 48V 48V
Min DC start voltage 10V/20V/40V
Low Battery Alarm 10.5Vdc ± 0.3Vdc for 12V battery;21.0Vdc ± 0.6Vdc for 24V battery;42.0Vdc ± 0.6Vdc for 48V battery
Low DC input Shut-down 10.0Vdc ± 0.3Vdc for 12V battery;20.0vdc± 0.6Vdc for 24V battery;40.0Vdc± 0.6Vdc for 48V battery
High DC input Alarm & Fault 16Vdc ± 0.3Vdc for 12V battery;32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery
High DC input Recovery 15.5Vdc ± 0.3Vdc for 12V battery;31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery
Power saver Load ≤25W (Enabled on "P/S auto" setting of Remote control)
Charge Mode Specifications:
Nominal Input Voltage 230Vac
Input Voltage Range 196~243Vac
Nominal Output Voltage According to the battery type
Nominal Charge Current 35A 35A 65A 35A 45A 35A 40A 50A
Charge Current Regulation ± 5Adc
Battery initial voltage 0 –15.7 Vdc (can operate with 0V battery)
Charger Short Circuit Protection Circuit breaker
Over Charge Protection Bat. V ≥15.7Vdc/31.4Vdc,beeps 0.5s every 1s & fault after 60s
General Specifications
Safety Certification CE(EN62040-1)
EMC Classification EN62040-2,C2
Operating Temperature Range 0°C to 40°C
Storage temperature 15°C below zero to 60°C
Operation humidity 5% to 95%
Audible Noise 60dB max
Cooling Forced air, variable speed fan
Size 1012E/1024E2012/2024E/2048E:381mm*217mm*179mm
3012/3024E/3048E/5024E/5048E/6024E/6048E:461 mm*217mm*179mm
