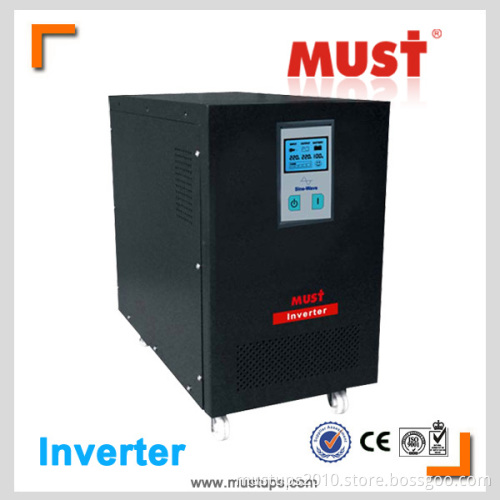

20kw Inverter 192VDC

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, Western Union

Product Description

Extremely low return noise and no disturbance to talking quality.

Special charging system design for better protection of battery life.

Short circuit, overload, overload, over voltage and low battery protection.

Superior performance from CPU control technology.
Compatible with generators and suitable for harsh environment where power voltage is extremely unstable.
Which satisfy the power supply for different back up time.
Use-friendly interface, LCD digital display and computer screen display of inverter operation status.
20kw Inverter 192VDC

MODEL		PT12KW	PT15KW/PT16KW
OUTPUT
Power Levels crated at		12KW	15KW;16KW
Output Voltage		220v±20%	220v±20%
Voltage Waveform		Pure Sine wave
Crest Factor		3:1
Output Frequency		Auto Select for 50/60Hz
(Synchronized to Mains)		47Hz ~ 55Hz for 50Hz nominal 56Hz ~ 65Hz for 60Hz nominal
Regulation (Nominal)		±10% typical of nominal voltage
Regulation		±3% of selected output voltage
(Battery mode)		remote set-up software
Transfer time		Blackout 3ms typical Brownout 1ms typical Battery mode to Normal mode 5ms typical
Over current protection		Over load alarm level 100% ~ 120% Over load shutdown level 120% ~ 190% (Adjustable by using the remote set-up software)
INPUT
Nominal Voltage		200V/220V/230V/240V Selectable	200V/220V/230V/240V Selectable
Input Frequency		47Hz ~ 65Hz, 50/60Hz auto-sensing
Efficiency (Normal mode)		97%
Noise Filtering		Full time EMI/RFI filtering
Voltage Range		145V-275V	145V-275V
BATTERY
Battery type		Lead-Acid 50Ah to 500Ah (Recommended)	Lead-Acid 50Ah to 500Ah (Recommended)
Voltage		12KW: 192Vdc	15KW: 192Vdc
			16KW:192Vdc
Typical backup time		No Limit
Charging method		Quick charging when battery is not fully charged, trickle charging when battery is 90% fully charged.
Maximum charging current		25A	25A
Average charging		Quick charging mode:14V maximum.
voltage for each battery		Trickle charging mode:13.5V (adjustable with the remote set-up software)
Protection		Over current protection & Over charging voltage protection (SCR control) Thermal protection (CPU control) When temperature inside the unit is over 45 °C, charger will stop charging for 2 minutes followed by an 2 minutes charging. The cycle will be repeate
Monitoring		Smart monitoring & warning for failed battery or open-circuit battery. Auto-detection each time when power on or every 6 days.
COMMUNICATIONS & MANAGEMENT
Standard Interface port		UPSilon2000 compatible; optional for RS232 .
Control panel		LCD or LED Selectable
Audible alarm		Alarm on battery:Low battery & Battery over voltage Alarm on abnormal operation:Over load, Short-circuit, & Over heat
Green mode function		1% to 14% of full load (adjustable by using the remote set-up software)
(Auto-shut-off in blackout)		The default setting is OFF.
Cooling fan control		Auto on / off, controlled by temperature & operation mode
ENVIRONMENTAL AND SAFETY
Operating Temperature		Up to 1500 meters:0°Cto 40°C
Transit/storage Temp.		15°C below zero to 55° C
Relative Humidity		5 - 95% non condensing
Operating Altitude		0 ~ 3000 meters
PHYSICAL
Appearance	product size(mm)	3966401100
	Net Weight(Kg)	12KW: 138.0kgs; 15KW: 142.0kgs; 16KW: 171.0kgs
	Carton Gross Weight	12KW: 158.0kgs, 15KW: 162.0kgs; 16KW: 196.0kgs
	shipping size	7006601280
