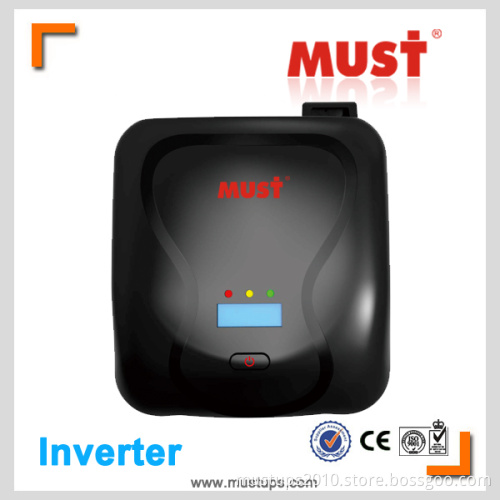

LCD Display Modified Sine Wave Inverter 1000va 2000va

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union, O/A

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, D/P, Western Union, O/A

Product Description

Application:
- High quality and availability of energy adapted to suit specific critical needs, covering a vast range of applications.
-Applied to TV, stereos, laptop and desktop computers and other home appliance.
-It will automatically transfer to inverter and provide power when AC supply is interrupted unexpectedly.

EP1000 Series Inverter 10A/20A charge current Specification
MODEL	P1000C	P2000C
CAPACITY	1000VA	2000VA
AC INPUT
Voltage	220/230/240VAC
Input Voltage Range	90-280VAC
Frequency	50-60Hz(Auto Detection)
Input Voltage Range Selector
Narrow	170-280VAC
Wide	90-280VAC
Inverter Mode Output
Voltage	230VAC + 10% / -18%
Frequency	50/60Hz ± 0.5Hz
Waveform	Modified Sine Wave
Efficiency (AC to AC)	>95%
Efficiency (DC to AC)	>80%
Battery
Voltage	12V DC	24V DC
Charger
Charging Voltage (V bat< 12.5V)	14.4 ± 0.4V
Charging Voltage (V bat< 12.5V)	13.7 ± 0.2V
Charging Current 10A ± 2A	10A ± 2A
Charging Current 20A ± 2A	20A ± 2A
Overcharging Protection	16V ± 0.4V
Transfer
Transfer Time	Typical 12-20ms, 40ms max
Indicator
Line Mode	Green LED blinks or lights steadily
Battery Mode	Yellow LED lights
Overload / Fault	Red LED blinks or lights steadily
Audible Alarm
Low Battery Voltage in Battery Mode	Beeps every 2 seconds
Overload	Beeps every 0.5 seconds
Fault	Beeps continuously
Environment
Temperature	0~40°C
Physical
Body Size (mm)	246X253X87
Net Weight (kg)	2.3
Gross Weight (kg)	2.8
Carton Size (mm)	400347596 (6pcs/carton)
Protections	Deep Discharge, Overcharge, Short Circuit, Overload, Battery Short, Over Voltage, Under Voltage.
