Factory Wholesaler 1000va Inverter

Get Latest Price

Payment Type:: L/C, T/T, D/P, Paypal, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, D/P, Paypal, Western Union

Product Description

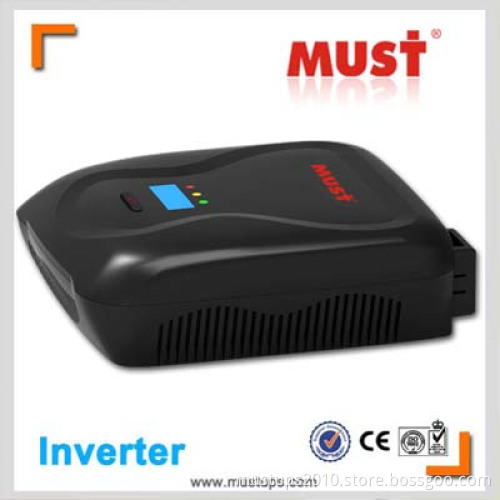

Factory wholesaler 1000va inverter

High Frequency Modified Sine Wavev Inverter 600W/12VDC

Main features:
1. Household use2. User selectable for accepting wider input voltage.
3. Full automatic and silent operation.
4. Rack Tower design.
5. High Frequency.
6. Off mode charging.
7. Available in five AC outlet configurations: NEMA, Schuko, French, India, and BS1363.
8. Compact size for convenient use and storage.
9. Built-in 8Amp super charger for up to 100Ah battery.
10. Small scale and cost effective inverter for home appliances and office equipment.
11.3 steps IGBT mosfet charging control to recharging time

MODEL		115V Models	230V Models
OUTPUT
Power Levels crated at nominal inputs		500VA/300W;1000VA/600W;2000VA/1200W	500VA/300W;1000VA/600W;2000VA/1200W
Output Voltage		120V	230V
Phase		Single
Voltage Waveform		Modified Sine Wave
Power Factor		0.6
Output Frequency(Synchronized to Mains)		Auto Select for 50/60Hz
Regulation (Nominal)		10%-18%
Regulation(Battery mode)		±0.1HZ
Transfer time		8ms Typical
INPUT
Nominal Voltage		110V/120V Selectable	220V/230V/240V Selectable
Phase		Single
Voltage range		90 - 145VAC or 170-280VAC ( Narrow Range )
		50-145VAC / 90-280VAC (Wide Range)
BATTERY
Charger Current		500VA/300/12VDC:10 Amp + / - 1Amp ;1000VA/600W/12VDC:10 Amp + / - 1Amp 2000VA/1200W/24VDC:10 Amp + / - 1Amp

Floating Voltage		500VA/300W:13.7V + / - 0.2V ; 1000VA/600W:27.4V + / - 0.4V ; 2000VA/1200W:27.4V + / - 0.4V

Overcharge Protection		500VA/300W: 15V +/- 0.3V charger stops and fault
		1000VA/600W:15V +/- 0.6V charger stops and fault
		2000VA/1200W: 30V +/- 0.6V charger stops and fault
EFFICIENCY
AC to AC		95% "> >95%
DC to AC		>80%
INDICATOR
AC Mode		Green LED lighting
Battery Mode		Yellow LED lighting
Battery Charging Mode		Green LED flashing every 2 seconds
Overload		Red LED flashing every 0.5 second
Fault		Red LED lighting
AUDIBLE ALARM
Low Battery at Battery Mode		Sounding every 2 seconds
Overload		Sounding every 0.5 second
Fault		Continously sounding
Protection
Full Rrotection		Deep Discharge, Overcharge, and Overload protection
ENVIRONMENTAL AND SAFETY
Operating Temperature		Up to 1500 meters:0 °Cto 40°C (32°F to 104°F)
Transit/storage Temp.		15°C below zero to 50°C (5°F to 131°F)
Relative Humidity		0 - 90% non condensing
Quality control system		ISO 9001:2000, ISO 14002-2004
PHYSICAL
Appearance	Size(mm)L x W x H	224 x 255 x 80
	Weight(Kg)	500VA / 300W: 1.8kg ;1000VA /600W :2.0kg ; 2000VA / 1200W :2.5kg
	Carton BOX(mm)L x W x H	400347596(6pcs)
	Gross Weight Weight(Kg)	500VA / 300W:7.4kg ;1000VA /600W :8kg ; 2000VA / 1200W :9.5kg
