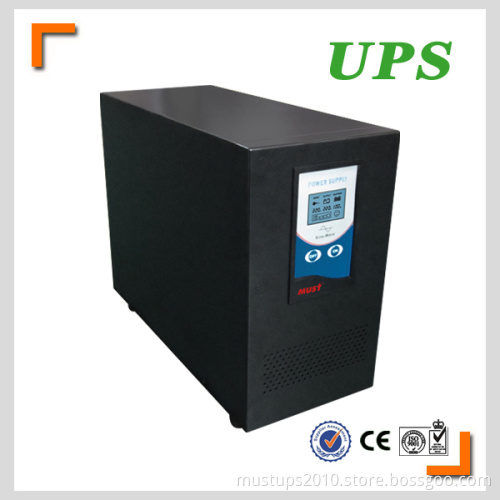

Line Interactive UPS 500va to 6000va

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

Suitable for installation on PCS running Windows Vista, 2003, XP, 2000, Me, 98; Linux, Mac OSX and the Sun Solaris operating system.
Accurate pure sine wave output; Strong capacity of different load.
Advanced performance due to the CPU control.
Wide range of power input and accurate output AVR.
Perfect protection for overload, short circuit, over-voltage, low-voltage and over-heating etc.
Adapt to various of power net well, compatible with generator
Front panel LCD display providing status, load and battery information and LEDs (standard version).
Compact dimensions and ergonomic design: It can be placed on a desk top or other convenient location, with easy to access connections and informative front panel.
UPS start automatically when the main power recover(optional).
Intelligent battery management.

MODEL	EW2150 500M	EW2150 650M	EW2150 800M	EW2150 1000M	EW2150 1500M
CAPACITY	500VA/300W	650VA/390 W	800VA/480W	1000VA/600W	1500VA/900W
INPUT
Phase	Single
Voltage	100/110/120/127/220/230(± 25%) VAC
Voltage Range	81-145VAC/145-290VAC
Frequency Range	60/50 ± 1% Hz (auto sensing)
OUTPUT
Phase	Single
Voltage (Batt. Mode)	115VAC or 230 VAC
Frequency Range (Batt. Mode)	60 Hz or 50 Hz ± 1 Hz
Transfer Time	Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode)	Sine Wave
BATTERY
Battery Type & Number	12V/7AHx1	12V/7AHx1	12V/9AHx1	12V/7AHx2	12V/9AHx2
Typical Recharge Time	8 hours to 90% after complete discharge
Backup Time(at a 2 PC load with 15 monitor)	10 minutes	9 minutes	8 minutes	13 minutes	16 minutes
Direct Voltage	12V	12V	12V	24V	24V
INDICATORS
LCD Indicator with Blue Back Light	The LCD will self turn on when the UPS is functioning including in, off, charging mode and fault mode
PROTECTION
Full Protection	Overload, discharge, and overcharge protection
ALARM
Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)	330 x 100 x 140
Net Weight (kgs)	5.0	6.5	8.0	20.0	23.0
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40° C (non-condensing)
Noise Level	Less than 40dB
MANAGEMENT
Optional USB/RS-232 Port	Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
