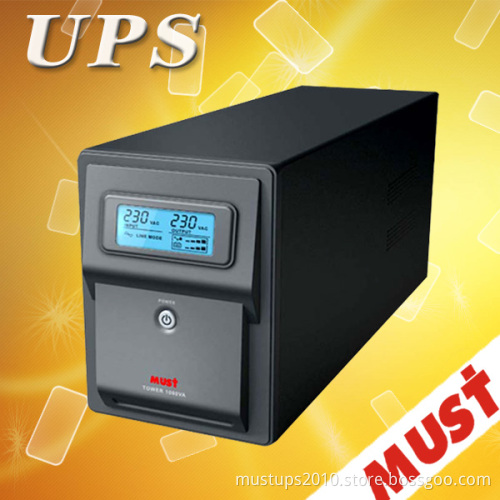

Ew2110 Series 1200va-1500va LCD UPS

Get Latest Price

Payment Type:: L/C, T/T, D/P, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	Shenzhen, China
Payment Type:	L/C, T/T, D/P, Western Union

Product Description

EW2110 Series 500VA-2kVA LCD UPS

UPS main features:
Fully digitized microprocessor controlled.
2kVA LCD series CPU control guarantees high reliability
Lightning and surge protection.
Cold start function (DC power on).
Equipped with AVR to stabilize output voltage wide input voltage range
Generator Compatible

Auto charging even though the UPS is off
Smart RS232 or USB communication interfaces;
Sealed lead-acid, maintenance free battery;
Battery low voltage, overload & short circuit protection;
Advanced automatic constant charging circuit, prolongs battery life;
Automatic buck and boost AVR function, wide input voltage 155-280VAC;
UPS with Lead-Acid, maintenance free battery inside, provides strong power to users.
Ew2110 Series 1200va-1500va LCD UPS

MODEL	EW2110 1200	EW2110 1500	EW2110 2000
CAPACITY	1200 VA /720W	1500 VA /900W	2000 VA /100W
INPUT
Phase	single
Voltage	115VAC or 220/230/240VAC
Voltage Range	81-145 VAC / 162-290 VAC
Frequency Range	60/50 Hz ±1% (auto sensing)
OUTPUT
Phase	single
Voltage (Batt. Mode)	115VAC or 230 VAC
Frequency Range (Batt. Mode)	60 Hz or 50 Hz ±1 Hz
Transfer Time	Typical 2-6 ms, 10ms max.
Overload Capability	110% for 5 min, 120% immediate shutdown
Waveform (Batt. Mode)	Modified SineWave
BATTERY
Battery Type & Number	12 V/7 AH x 2	12 V/9 AH x 2	12 V/9 AH x 2
Typical Recharge Time	8 hours recover to 90% capacity
Backup Time(at a 1 PC load with 15 monitor)	15 minutes	20 minutes	20 minutes
INDICATORS
LCD Indicator with Blue Back Light	The LCD will self turn on when the UPS is functioning including in, off, charging mode and fault mode
PROTECTION
Full Protection	Overload, discharge, and overcharge protection
TRANSFER TIME
Typical	Typical 2-6 ms, 10ms max.
ALARM
Battery Mode	Sounding every 10 seconds
Low Battery	Sounding every second
Overload	Sounding every 0.5 second
Battery Replacement Alarm	Sounding every 2 seconds
Fault	Continuously sounding
PHYSICAL
Dimension, D X W X H (mm)	368.3X140.2X180.4
Net Weight (kgs)	13.8	14.2	16
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	AC Mode: Less than 40dB Backup Mode: Less than 45dB
MANAGEMENT
Optional USB/RS-232 Port	Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
