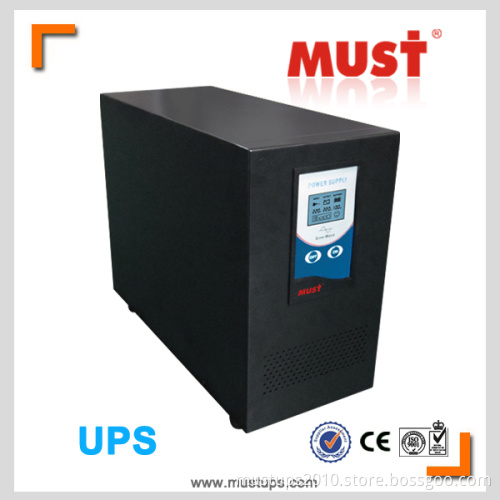

LCD Pure Sine Wave Line Interactive UPS Low Frequency 1kVA to 6kVA

Get Latest Price

Payment Type:: L/C, T/T, Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	China
Payment Type:	L/C, T/T, Western Union

Product Description

1.1000va to 6000va UPS
2. Inside 12v 7ah/9ah/17ah batteries
3. Pure sine wave.
4. Low frequency, inbuilt transformer.
5. AVR function
6. Support inductive load, motor, generator.
7. Input range: 145-275vac
8. Output: 230vac+/-10%
9. With RS232 communication port
10. Transfor time: 3ms
11. Protection: Automatic self-test, discharge protection, over charging protection, short-circuit protection. Low voltage, over voltage, over load, over heating? Protection etc.

MODEL	EW2150 1KM/S	EW2150 2KM/S	EW2150 3KM/S	EW2150 5KS	EW2150 6KS
CAPACITY	1KVA /700W	2KVA /1400W	3KVA /2100W	5KVA /3500W	6KVA /4200W
INPUT
Voltage	100/110/120/127/220/230(± 25%) VAC
Voltage Range	81-145 VAC / 162-290 VAC
Frequency Range	60/50 ± 10% Hz (auto sensing)
OUTPUT
AC Voltage Regulation	±10%
Frequency Range	60 Hz or 50 Hz ±1 Hz
Transfer Time	Typical 2-6 ms, 10ms max.
Waveform (Batt. Mode)	Sine Wave
BATTERY
Battery Type & Number	12 V/7 AH x 2	12 V/12 AH x 2	12 V/12 AH x 2	12 V/17 AH x 4	12 V/17 AH x 4
Recharge Current	Long back up model:max 15A Standard model:max 3A
INDICATORS
LCD/LED	Optional
PROTECTION
Overload	shut dowm if overload exceeds 120% /normal value for 30 seconds
Short circuit	Cut off immediately or input circuit breaker protection
ALARM
Battery back-up	Sounding every 4 seconds
Low Battery	Sounding every second
Overload	Audible alarm
Fault	Continuously sounding
PHYSICAL
M Dimension, D X W X H (mm)	375 x 130 x 190	452192338(2kva-3kva);500260455(5kva-6kva)
M Net Weight (kgs)	12.0	21	25	29.5	33.7
S Dimension, D X W X H (mm)	375 x 130 x 190	452192338
S Net Weight (kgs)	9.6	17.0	23.7	27	37.3
OPERATING ENVIRONMENT
Humidity	0-90 % RH @ 0- 40°C (non-condensing)
Noise Level	Less than 45dB
MANAGEMENT
Optional USB/RS-232 Port	Supports Windows® 98/2000/2003/XP/Vista/2008, Windows® 7, Linux, and MAC
