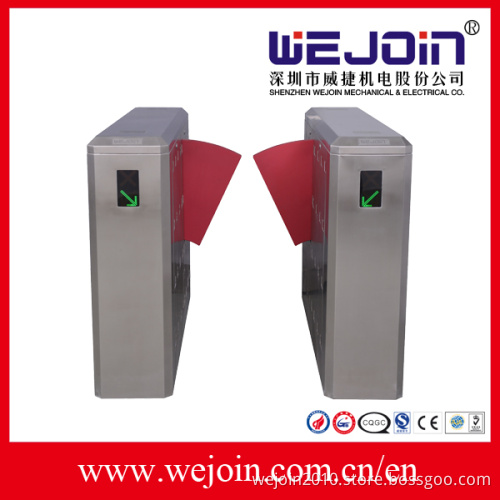

Speed Lane, Bi-Direction, Automatic Flap Barrier Gates

Functions and features
1.A compact electro-mechanical design with unique drive and a self-lock mechanism
2.Automatic detection for malfunction
3.Input interface for dry contact and switch signal connection
4.Adjustable auto-delay closing
5.Infrared photocells for safety access
6.Alarm for unauthorized access and no access against passenger flow
7.Anti-reversing passing
8.Auto closing when power on
9.Auto open and free access when power off
10.Adjustable access directions
11.Emergency interface available
12.Traffic light indicating passenger access
Technical data
1.Housing dimension:Bridge type bevel angle 1400*270*1000mm
2.Flap arm length:275mm
3.Max arm width:900mm
4.Housing material:Stainless steel 304
5.Power supply/frequency:AC220V±10%, 50Hz
AC110±10%, 60Hz
6.Drive motor:12V direct current brush motor
7.Flow speed:25~30/minute
8.Input interface:+5V electric level signal or >100ms impulse signal, drive current >10mA, dry contact (COM NO).
9.Opening and closing time:0.5 minute
10.Power on and reset time:3s
11.IP protection degree:IP 32
12.Working environment:
Inner and outer (with shelter)
Temperature:-25ºC~+50ººC
Relative humidity:≤90%
