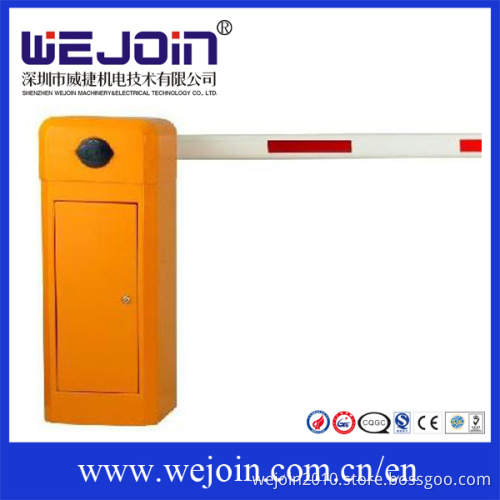

Barrier (WJDZ102)

Barrier Gate:

 A biggest manufacturer of barrier gate in Shenzhen, China

1. Functions & Features

1) Manual release

2) Machine core with compression spring, effectively avoids the accidents caused by spring breaking

3) Die-casting aluminum alloy motor, precision and good at thermal radiating

4) Motor cooling fan, solving the problem of heat-protection

5) Double safety limit switches (photoelectricity limit switch/motor memory sensor)

6) Reversing on obstacle

7) Auto-closing

8) Support the INFRARER PHTOCELL for anti-bumping function (optional)

9) Support the external and internal VEHICLE LOOP DETECTOR (optional)

10) Traffic light interface

11) Wire control (switch signal)/ Remote control (418MHZ)

12) RS485 communication module (optional)

2. Technical Data

Mode (WJDZ): 102-11, 102-13, 102-16

Running time: 1s, 3s, 6s

Boom type: straight

Max Boom length: 3m, 4.5m, 6m

Boom dimension (WxH): 45x80mm

Boom weight: 3kg, 4.5kg, 6kg

Voltage: 220V ± 10%,110V ± 10%

Frequency: 50/60Hz

Motor voltage: 220V

Power: 120W

3. Package Preview

4, Inner Motor Preview
