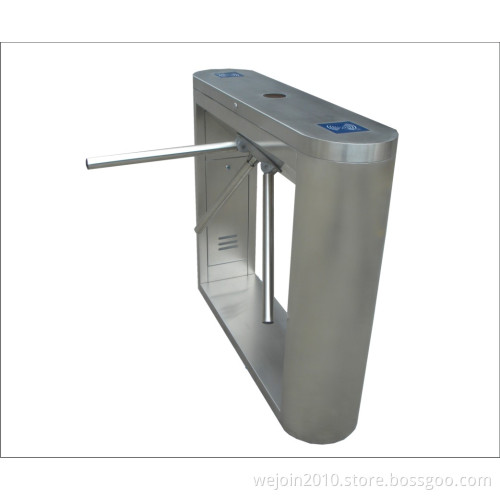

Semi-Auto Tripod Turnstile for Gate Security

Functions & Features
Stainless steel housing
Bi-direction pass
Arms auto drop when power off
Arms auto rise up when power on and auto stop on obstacle
Traffic light indicator
DFID interface
Photoelectric inspection
RS232 socket, LAN socket
If the passenger does not pass in valid time, the passage will be locked up again. The valid passing time can be set up by operator.
Passenger counter (optional)
Technical Data
Voltage: 220V± 10%, 110V± 10%
Voltage: 50/60Hz
Control Circuit: DC12V
Consumption: 30W
Passing Speed: ≤ 35 Persons/min
Working Temperature: -25 ~55
Protection Gate: IP40
Communication Socket: RS232 standard socket/LAN socket
